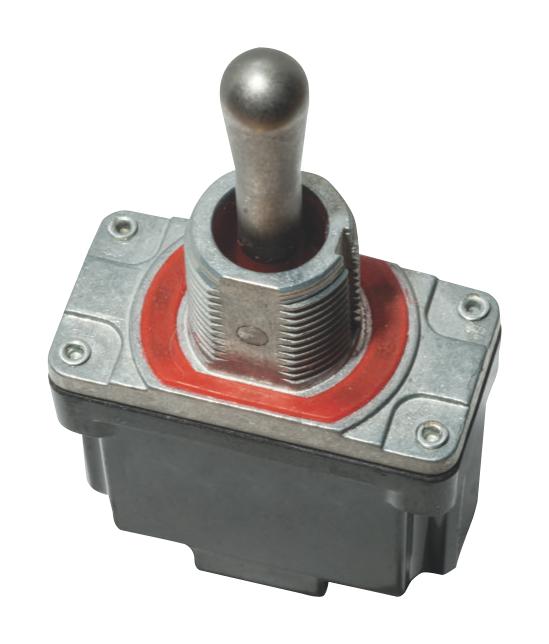

C&K COMPONENTS PT203SSQ Sealed Power Toggle Switch
The PT203SSQ is a sealed power toggle switch designed for demanding industrial applications, featuring IP66/IP68 ratings for outdoor use, oil and fuel resistance, and high durability. It comes with options for SP or DP functions, various actuator types, and quick connect or solder terminals. Suitable for off-road, construction, and agricultural equipment, it offers reliable performance under vibration and harsh weather conditions, making it ideal for lift controls and outdoor industrial environments. Certified for global acceptance, it combines robust construction with versatile wiring options for demanding control systems.
C&K COMPONENTS PT203SSQ Sealed Power Toggle Switch Specifications:
- UL electrical ratings: 15A GP, 277VAC, 10A GP, 277VAC, 1/2 hp 125VAC, 1 hp 250VAC, 15(4)A 277VAC, 1/4 hp 25VAC, 0.75A 125VDC, 0.5A 250VDC
- Electrical life: 10,000 cycles
- DC ratings: Up to 25, 24VDC, 10A, 28VDC, 154, 28VDC
- Dielectric strength: 2500V min. (terminal to toggle)
- Insulation resistance: 1000 MQ min. initial
- Contact resistance: 50mΩ max. initial
- Operating temperature: -40°C to +85°C
- IP ratings: IP66/IP68
- Construction: Thermoset materials, brass hardware, nickel plated
- Switch functions: SP, DP, momentary options available
- Actuator: Standard, various options including metal or plastic
- Terminals: Screw terminal, quick connect, or solder terminal
- Dimensions: Variable depending on model, generally compact for panel mounting
- Integrated panel seal for extra protection in harsh environments
- Suitable for controlling lift gates, outdoor industrial equipment, weather-resistant controls, and more.
Buy the C&K Series PT Sealed Power Toggle Switch: PT203SSQ
Purchase the C&K Series PT203SSQ sealed power toggle switch online today and enhance your control systems with a rugged, durable solution. Featuring IP66/IP68 ratings, oil and fuel resistance, and versatile terminal options, this switch is ideal for demanding outdoor applications such as lift controls and harsh industrial environments. Its high-quality construction ensures reliable performance over extensive use, supporting various switch functions including SP, DP, and momentary configurations. Secure your project’s connectivity today with this dependable, weather-resistant toggle switch.
Order your C&K Series PT203SSQ toggle switch today and ensure reliable, weatherproof control for your outdoor and industrial projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PT203SSQ?
You can click on the BUY or RFQ button to purchase PT203SSQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PT203SSQ?
You can download the PT203SSQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PT203SSQ?
C&K COMPONENTS
