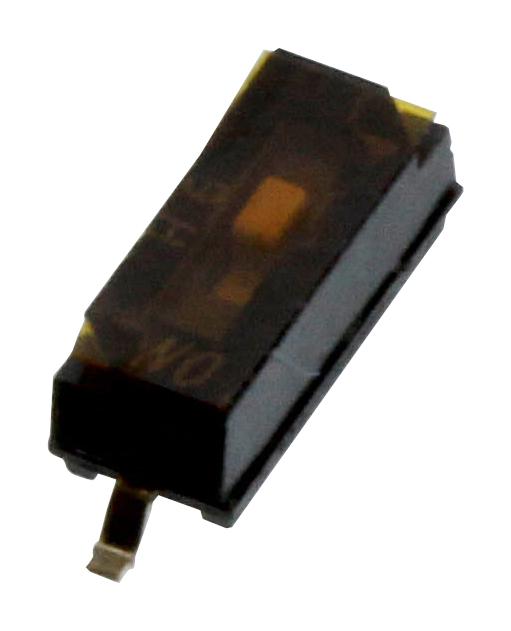

C&K COMPONENTS TDA01H0SB1R Surface Mount DIP Switch
Ultra-miniature surface mount half-pitch DIP switches designed for reliable electrical performance in compact electronic applications. Featuring single-pole single-throw (SPST) configurations with multiple positions (1, 2, 4, 6, 8, 10), these switches are ideal for hand-held devices, portable computers, instrumentation, and control systems. They are process sealed for surface mount soldering, ensuring durability and washability. Made with copper alloy contacts with gold over nickel plating and case/cover in PPS material, they provide a reliable switch operation with a mechanical and electrical life of 1,000 cycles and a contact resistance of max 100 milliohms.
C&K COMPONENTS TDA01H0SB1R Surface Mount DIP Switch Specifications:
- Switch Function: SPST - 1, 2, 4, 6, 8 & 10 positions
- Contact Rating: 24 V DC, 25 mA; 50 VDC, 100 mA
- Mechanical and Electrical Life: 1,000 cycles
- Contact Resistance: 100 mΩ max
- Insulation Resistance: 100 MΩ @ 100 V DC min
- Dielectric Strength: 300 V AC min
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 4.9 N max
- Solderability: MIL-STD-202F Method 208D or EIA RS-186E
- Case & Cover: PPS (UL94V-0); Actuator: LCP (UL94V-0); Contacts: Copper alloy, gold plated
- Terminals: Copper alloy, gold flash over nickel plate
- Tape Seal: Polyimide
Buy the RoHS TDA01H0SB1R – Reliable Switches for Industrial Applications
Purchase the RoHS compliant surface mount DIP switches online today to enhance your electronic designs with reliable, sealed switching solutions. These ultra-miniature SPST switches are ideal for compact devices, providing 1,000 cycle durability, gold-plated contacts for excellent connectivity, and process sealing for washability. Perfect for handheld gadgets, instrumentation, and control panels, they offer consistent electrical performance with maximum contact resistance of 100 milliohms. Easy to install, these switches support multiple positions and are supplied in tape and reel packaging for efficient production.
Order your RoHS TDA01H0SB1R series miniature surface mount switches today and ensure your electronic projects have reliable, durable switching performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TDA01H0SB1R?
You can click on the BUY or RFQ button to purchase TDA01H0SB1R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TDA01H0SB1R?
You can download the TDA01H0SB1R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TDA01H0SB1R?
C&K COMPONENTS
