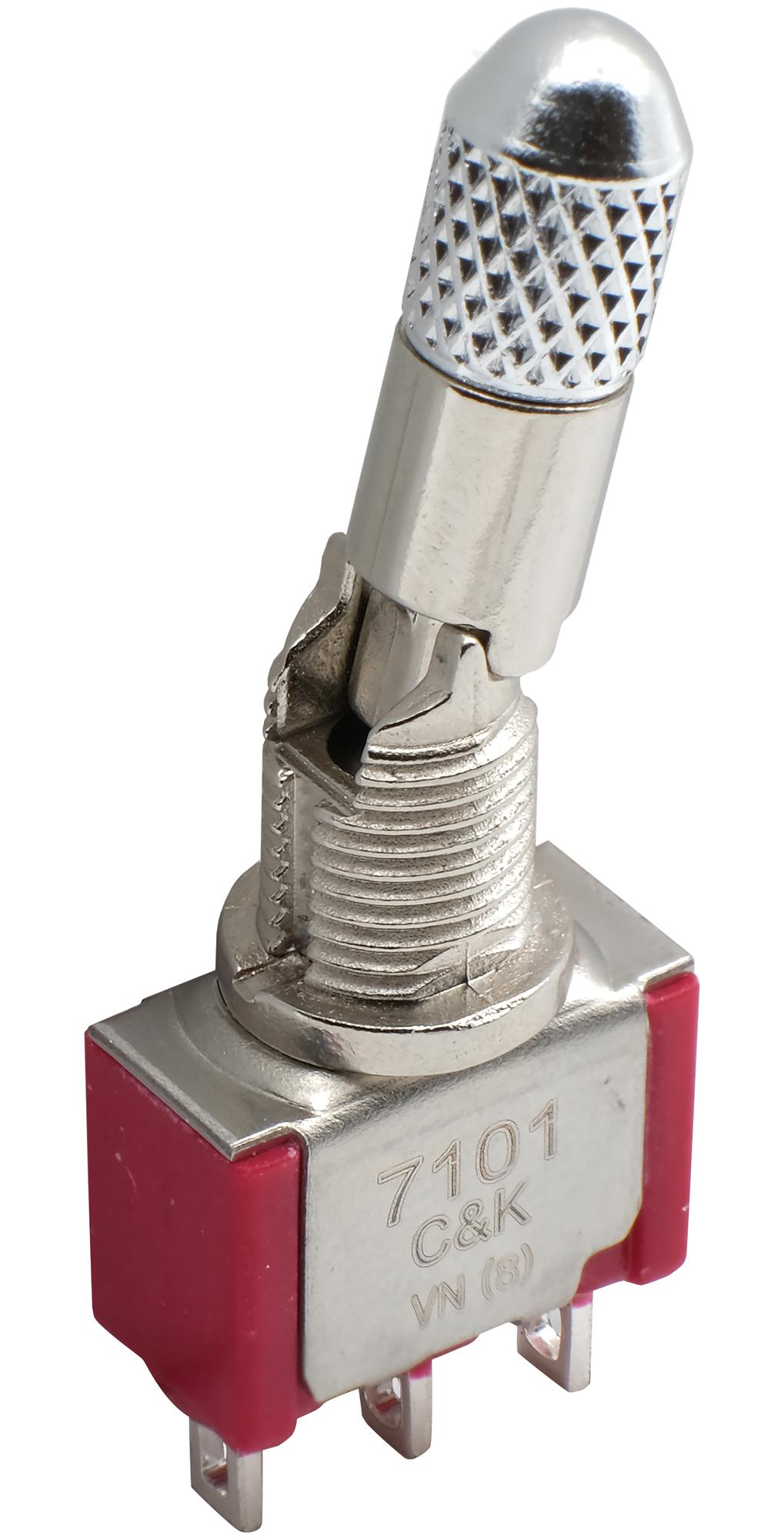

C&K COMPONENTS 7411SYZQE Miniature Toggle Switch
The 7000 Series Miniature Toggle Switches are compact, reliable electrical switches designed for various industrial applications including telecommunications, instrumentation, and medical equipment. They feature multi-pole and mult-position configurations with epoxy terminal seals compatible with bottom wash cleaning. Materials include glass-filled nylon, brass, zinc, stainless steel, and copper alloys with gold or silver plating. The switches support multiple actuator types, mounting options, and contact materials, with ROHS compliance. They provide high dielectric strength, multiple electrical ratings, and long mechanical life, suitable for demanding environments.
C&K COMPONENTS 7411SYZQE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Contact Rating: 0.4 VA max. @ 20 V AC/DC for B contact; 5 AMPS @ 120 V AC/28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles for certain models; 40,000 cycles for others
- Operating Temperature: -30°C to 85°C
- Contact Resistance: Below 10 mΩ initially @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9Ω min.
- Materials: Glass-filled nylon, brass with chrome or nickel plating, stainless steel housing, copper alloy contacts
- Seal: Epoxy terminal seal, compatible with bottom wash cleaning
- Mounting Options: Vertical, PC thru-hole, extended, snap-in
- Actuator Types: Various high and low profiles, lockable options, anti-rotation features
- RoHS Compliance: Available on specific models
- Dimensions: Multiple sizes with typical actuator heights ranging from 0.250
Buy the C&K Series Miniature Toggle Switch: 7411SYZQE
Discover the reliable C&K Series Miniature Toggle Switch with multiple configurations, epoxy sealed contacts, and robust materials suitable for harsh environments. Ideal for industrial automation, telecom, and medical equipment, these switches feature ROHS compliance, high dielectric strength, and long operational life. Mounting options include vertical, PC thru-hole, extended, and snap-in, with various actuator types and contact materials like gold or silver plating. Perfect for demanding applications needing corrosion resistance, durability, and precise switching performance.
Order your C&K Series Miniature Toggle Switch 7411SYZQE today and give your projects the dependable quality they deserve during demanding operations.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7411SYZQE?
You can click on the BUY or RFQ button to purchase 7411SYZQE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7411SYZQE?
You can download the 7411SYZQE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7411SYZQE?
C&K COMPONENTS
