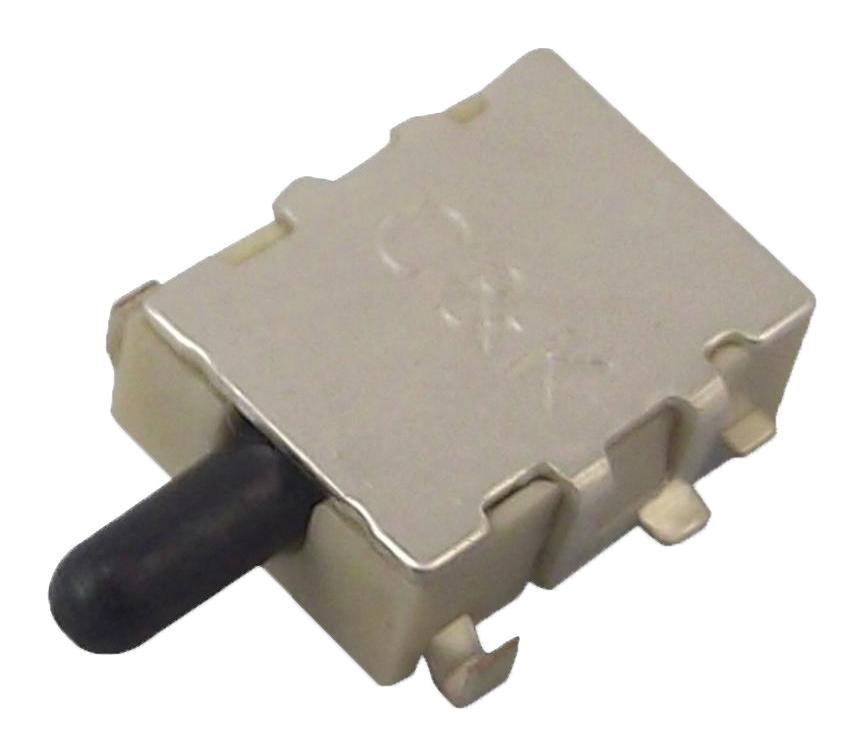

C&K COMPONENTS SDS005R Detect Switch
The SDS Series Side Actuated Detect Switches are low-profile, 2mm height, ideal for detector applications. They feature low actuation force of 75 grams, and overtravel for reliable detection in medical, electronic, and modular computing devices. Made from glass-filled LCP with nickel silver surface plates, these switches provide a contact rating of 100 mA at 12 VDC, with a life cycle of 50,000 cycles. Suitable for PCB mounting, they are RoHS compliant, solderable at 260°C, and available in bulk or tape & reel packaging for efficient automation.
C&K COMPONENTS SDS005R Detect Switch Specifications:
- Contact Rating: 100 mA @ 12 VDC
- Mechanical & Electrical Life: 50,000 cycles
- Contact Resistance: 100 mΩ max. initial
- Insulation Resistance: 10 MΩ min. @ 100 VDC
- Operating Temperature: -40°C to +85°C
- Solderability: IR compatible, no wash, maximum 260°C
- Materials: Base and actuator made from glass-filled LCP (UL 94V-0), surface plate nickel silver with silver plating, contacts and terminals phosphor bronze with plating
- Packaging: Bulk or tape & reel (3000 per reel)
Buy the Brand SDS – Reliable Detect Switch for Industrial Applications
Purchase the SDS Series Detect Switch online today to benefit from reliable operation, low actuation force, and low profile design. Ideal for detector applications, medical devices, consumer electronics, and PCB lock detection, these switches are RoHS compliant and compatible with automated assembly methods. Available in bulk or tape & reel packaging, they ensure quick delivery and easy switching solutions. Enhance your production line with a switch that offers excellent longevity of 50,000 cycles and high insulation resistance, perfect for precise detection tasks in demanding environments.
Buy SDS SDS005 switch now and ensure reliable detection in your industrial or electronic applications with this high-performance, RoHS compliant switch.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDS005R?
You can click on the BUY or RFQ button to purchase SDS005R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDS005R?
You can download the SDS005R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDS005R?
C&K COMPONENTS
