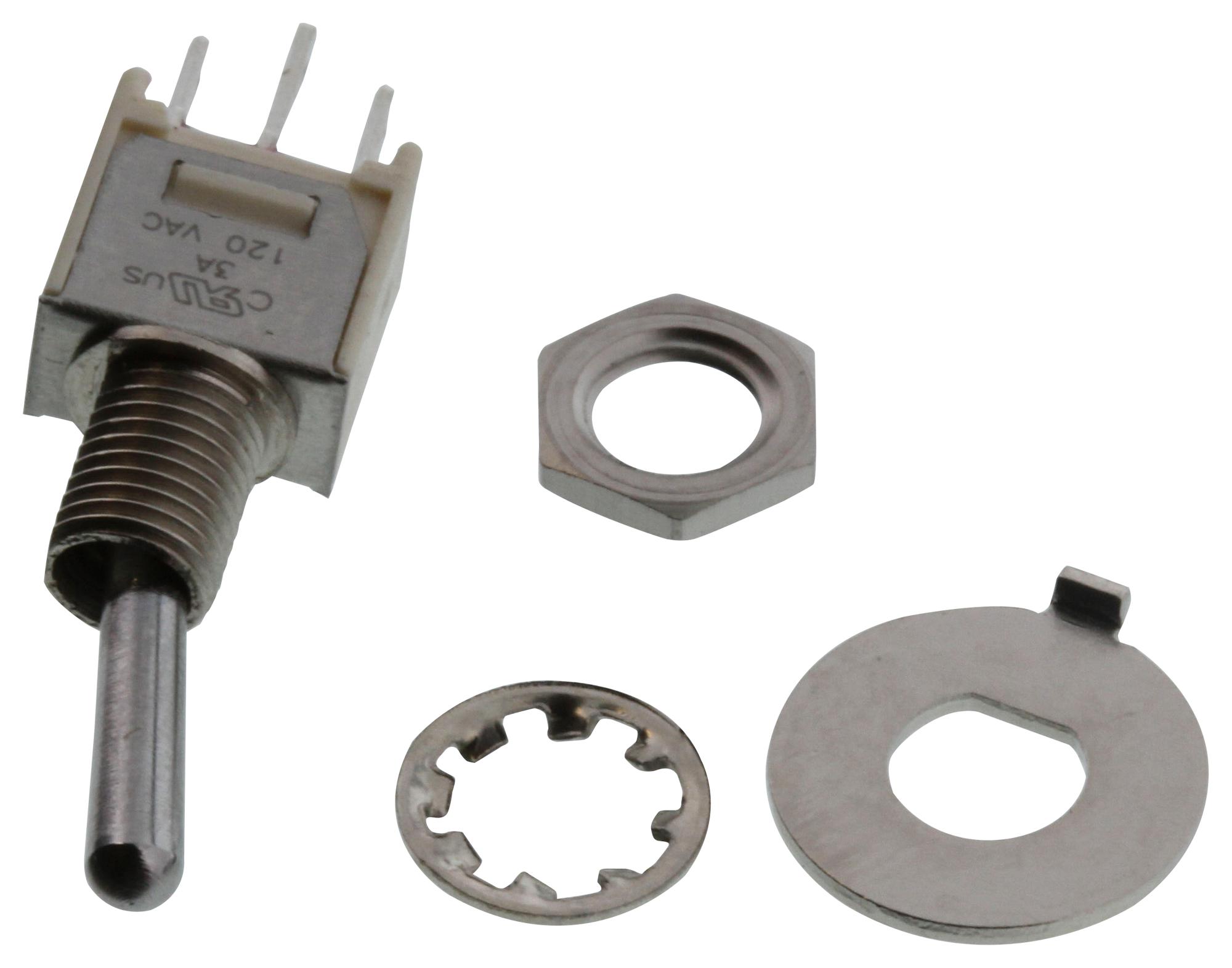

C&K COMPONENTS T101SHZQE Subminiature Toggle Switch
The T Series subminiature toggle switches offer a compact footprint with single and double pole models suitable for hand-held telecommunications, instrumentation, and medical equipment. Constructed with durable materials like glass-filled nylon and brass, these switches feature a range of contact materials, including gold, silver, and tin plating, ensuring reliable electrical connections. They are RoHS compliant, have high electrical life cycles, and operate in temperatures from -30°C to 85°C. Available with various actuators and mounting options, these switches are ideal for precision electronic control applications.
C&K COMPONENTS T101SHZQE Subminiature Toggle Switch Specifications:
- Contact Rating: 3 AMPS @ 120 V AC or 28 V DC for TX01 models, others: 2 AMPS @ 120 V AC or 28 V DC
- Electrical Life: TXO1 models: 60,000 cycles, others: 30,000 cycles
- Contact Resistance: Below 20 mΩ, initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9 Ω minimum
- Dielectric Strength: 1000 V min. @ sea level
- Operating Temperature: -30°C to 85°C
- Materials: Case - glass-filled nylon or DAP; Actuator - brass chrome-plated; Terminals - copper alloy with gold, silver, or tin plating
- Seals: Epoxy terminal seal, epoxy seat
- Hardware: Brass nut & locking ring, steel lockwasher
- RoHS Compliance: Models with contact materials P, R, Q, B, G are RoHS compliant
- Mounting Options: PC and panel mount; threaded or unthreaded bushings various heights
- Actuator Types: Flatted, threaded, keyway, horizontal, vertical, and lockable levers
- Switch Functionality: SPDT, DPDT, with various actuation and locking options.
- Certified for use with all bottom-wash PCB cleaning methods.
Buy the CK Switches Series T Subminiature Toggle Switch: T101SHZQE
Order the CK Switches T101SHZQE subminiature toggle switch online today to benefit from precise control, durable construction, and multiple mounting options. Perfect for telecommunications, instrumentation, and medical equipment, this switch combines high electrical life cycles with RoHS compliance. With various contact materials and actuator types, it guarantees reliable performance even in demanding environments. Purchase now to ensure your electronic systems maintain optimal operation, benefitting from fast delivery, secure checkout, and comprehensive product support.
Buy CK Switches T101SHZQE now and experience unmatched reliability and performance in electronic control applications with versatile mounting options.
