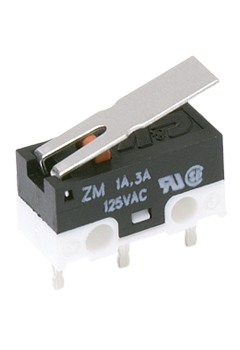

C&K COMPONENTS ZMCHM9T23T Subminiature Snap-acting Switch
This subminiature snap-acting switch provides reliable switching in compact electronic devices. It features a robust nylon 6/6 housing, various actuator options including leaf and simulated roller, and PC thru-hole terminations. With a contact rating up to 3A at 125VAC and an electrical life of 10,000 cycles, it ensures long-term durability. The switch operates in a temperature range of -30°C to 85°C and is suitable for PCB detection, security systems, communication devices, testing equipment, and consumer electronics. Its RoHS compliance makes it ideal for environmentally conscious applications, combining performance with space-saving design.
C&K COMPONENTS ZMCHM9T23T Subminiature Snap-acting Switch Specifications:
- Contact Rating: 3A @ 125 VAC, 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1000 Vrms.
- Operating Temperature: -30°C to 85°C.
- Operating Force: Cu: 150 grams, CH: 90 grams.
- Materials: Cover, actuator button, case - Nylon 6/6; Spring - SUS; Movable blade - BeCu; Contacts - Silver alloy; Terminals - Brass
- Actuator Options: Leaf, simulated roller, pin plunger
- Termination Type: PC thru-hole with optional retention feature
- Dimensions: Varies depending on actuator - approximately 13 mm length for leaf, 15 mm for rollers, with mounting hole size around 2.8 mm
- RoHS compliant, UL/CSA listed.
Buy the Brand ZM Series – Reliable Micro Switch for Industrial Applications
Order the ZM Series subminiature snap-acting switch online today and benefit from high reliability, compact size, and versatile actuator options. Perfect for PCB detection, security systems, communication devices, and testing equipment, this switch guarantees long-lasting performance with a contact rating of 3A at 125VAC and 10,000 cycles of electrical life. RoHS compliant and UL listed, it is suitable for diverse industrial and electronic applications. Enhance your project with this space-saving, durable switch available for quick online purchase.
Buy ZM Series snap-acting switch now and experience unmatched reliability and performance in compact electronic designs.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCHM9T23T?
You can click on the BUY or RFQ button to purchase ZMCHM9T23T from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCHM9T23T?
You can download the ZMCHM9T23T datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCHM9T23T?
C&K COMPONENTS
