C&K COMPONENTS TDA02H0SB1R Miniature Surface Mount DIP Switch
The TDA Series TDA02H0SB1R is an ultra-miniature surface mount DIP switch designed for space-constrained electronic applications. It features multiple switch positions, including options for 1, 2, 4, 6, 8, and 10 poles, with a contact rating of 24V DC, 25 mA, suitable for hand-held devices, portable electronics, instrumentation, and control systems. The switch provides high reliability with a 1,000 mechanical and electrical cycle life, gold-plated contacts for durability, and is processed for surface-mount soldering. Compact, sealed, and RoHS compliant, this switch is ideal for miniature electronic assemblies.
C&K COMPONENTS TDA02H0SB1R Miniature Surface Mount DIP Switch Specifications:
- Switch function: SPST - 1, 2, 4, 6, 8 & 10 positions
- Contact Rating: 24V DC, 25 mA; 50V DC, 100 mA
- Mechanical and Electrical Life: 1,000 cycles
- Contact Resistance: 100 mΩ max
- Insulation Resistance: 100 MΩ @ 100 V DC min
- Dielectric Strength: 300 V AC min
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 4.9 N max
- Material Case & Cover: PPS (UL94V-0); Actuator: LCP (UL94V-0)
- Contacts & Terminals: Copper alloy with gold plating over nickel
- Sealing Material: Polyimide
- Packaging: Rigid tubes or tape & reel, depending on model

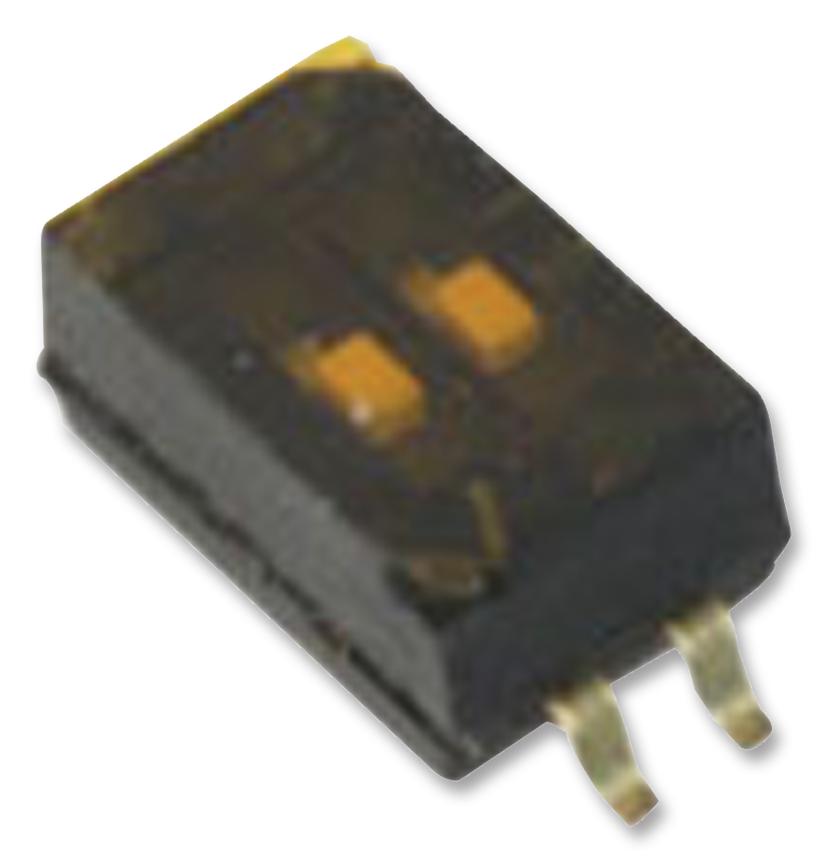

Buy the RoHS TDA Series Switch: TDA02H0SB1R
Enhance your electronic assembly with the TDA Series Miniature Surface Mount DIP Switch. Designed for space-efficient applications, it offers multiple positions, high durability, and gold-plated contacts for reliable performance. This sealed switch is suitable for portable devices, instrumentation, and control systems, providing excellent electrical reliability and long cycle life. Easy to process for surface-mount soldering, complies with RoHS standards, and includes options for various configurations, making it a perfect choice for compact electronic projects needing dependable switching components.
Order your RoHS TDA Series TDA02H0SB1R ultra-miniature surface mount DIP switch today and give your electronic projects the reliable switching performance they deserve.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TDA02H0SB1R?
You can click on the BUY or RFQ button to purchase TDA02H0SB1R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TDA02H0SB1R?
You can download the TDA02H0SB1R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TDA02H0SB1R?
C&K COMPONENTS
