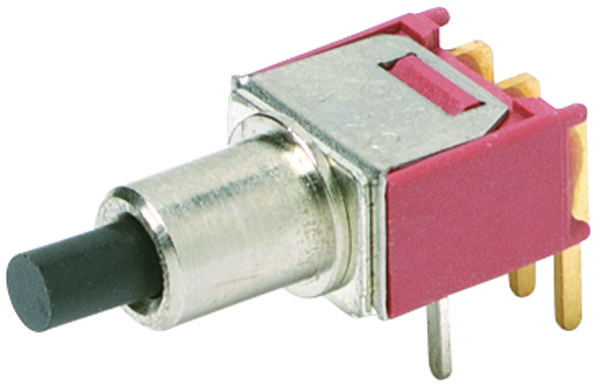

C&K COMPONENTS TP11SH9ABE Miniature Pushbutton Switch
The TP11SH9ABE is a compact, epoxy-sealed pushbutton switch featuring a glass-filled nylon case and brass bushing, suitable for panel mounting in telecommunications, networking, and computer peripherals. It offers a momentary SPST function, with a 0.4 VA maximum contact rating at 20 V AC/DC, and a mechanical life of 60,000 cycles. The switch supports RoHS compliance, with durable gold-plated contacts over nickel, and operates reliably between -30°C to 85°C, making it ideal for low-level, dry circuit applications requiring high durability and reliable switching.
C&K COMPONENTS TP11SH9ABE Miniature Pushbutton Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC/DC; 1 AMP @ 120 V AC/DC
- Electrical Life: 60,000 make-and-break cycles
- Contact Resistance: Below 20 mΩ initial
- Insulation Resistance: 10^9 Ω for 15 min
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30°C to 85°C
- Materials: Case - Glass-filled nylon, Brass bushing, Epoxy terminals
- Switch Function: SPST momentary
- Dimensions: Actuator length ~0.155 inches, Bushing diameter ~0.220 inches
- Termination: Epoxy-sealed terminals, screw mounting
- RoHS compliant models available
- Dimensions are approximate and subject to change
Buy the CK Series Tiny Pushbutton Switch: TP11SH9ABE
Order the CK Series Tiny Pushbutton Switch TP11SH9ABE online today to experience reliable, epoxy-sealed performance for telecommunications, networking, or computer peripheral applications. Designed with a durable glass-filled nylon case and gold-plated contacts, this switch offers long life with 60,000 cycles and RoHS compliance. Its compact size, epoxy terminal seal, and operating temperature range of -30°C to 85°C make it perfect for low-level dry circuit switching. Enhance your projects with a miniature switch built for durability and precision.
Get CK Tiny Pushbutton Switch TP11SH9ABE today—built for precision and long-lasting durability in compact and reliable switching solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TP11SH9ABE?
You can click on the BUY or RFQ button to purchase TP11SH9ABE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TP11SH9ABE?
You can download the TP11SH9ABE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TP11SH9ABE?
C&K COMPONENTS
