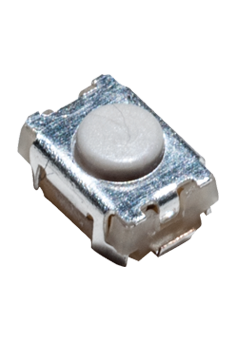

C&K COMPONENTS Y97MT26B5MBFP Microminiature SMT Switch
The C&K PTS820 series microminiature SMT top-actuated switch offers a compact solution for a variety of applications. With a footprint of just 3.9 x 2.9 mm and available in multiple heights (1.5mm, 2.0mm, and 2.5mm), this switch is ideal for space-constrained designs. It boasts a high cycle life and is suitable for use in control panels, nomad devices, remote controls, and keyless entry systems. The switch utilizes a momentary action with a SPST N.O. contact arrangement and is available with or without pegs. Refer to the datasheet for detailed ordering information and specifications.
C&K COMPONENTS Y97MT26B5MBFP Microminiature SMT Switch Specifications:
- Footprint: 3.9 x 2.9 mm
- Height: 1.5mm, 2.0mm, 2.5mm
- Contact Arrangement: 1 make contact (SPST N.O.)
- Travel: 0.2mm ± 0.1mm
- Operating Force: 160± 50 gf (typical)
- Life Cycles: 100,000 - 200,000 cycles
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 100 VA C (1mn)
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Temperature: -40˚C to 85˚C
- Soldering: Infrared Reflow Soldering (IEC61760-1)
Buy the Y97MT26B5MBFP C&K COMPONENTS Microminiature SMT Switch | myMectronic
Purchase the C&K Y97MT26B5MBFP switch securely and efficiently through our online platform.
Buy Now
