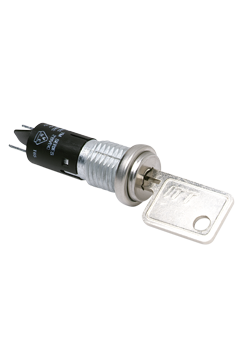

C&K COMPONENTS YM06132C805NQ 4 Tumbler Miniature Switchlock
The C&K COMPONENTS YM06132C805NQ is a robust 4 tumbler miniature switchlock designed for secure and reliable operation. Its snap-together assembly allows for pre-wiring, simplifying installation. The switchlock features wire lead terminations for versatile connectivity and a 4 tumbler lock with a positive detent for enhanced security. Typical applications include cable TV connectors, automotive accessories, and computers. Constructed with a zinc alloy lock body, stainless steel facing, and nylon housing, this switchlock provides durability and long-lasting performance. Available with silver or gold contacts to suit various electrical requirements.
C&K COMPONENTS YM06132C805NQ 4 Tumbler Miniature Switchlock Specifications:
- Contact Rating: 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA). 4 AMPS @ 125 V AC, 2 AMPS @ 250 V AC, T65, class 1 (VDE)
- Electrical Life: 10,000 make-and-break cycles at full load
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Indexing: 90º:2 positions
- Lock Material: Zinc alloy with stainless steel facing
- Keys: Two nickel plated brass keys
- Switch Housing: 6/6 Nylon (UL 94V-2)
- Contacts & Terminals: Copper, silver plated
- Mounting Nut: Brass, bright zinc plated
- Lock Type: 4 Tumbler, single bitted lock with detent
- Lock Finish: Stainless steel facing
- Terminations: Quick connect or Wire lead
- Mounting Style: With nut
- Contact Material: Silver or Gold
