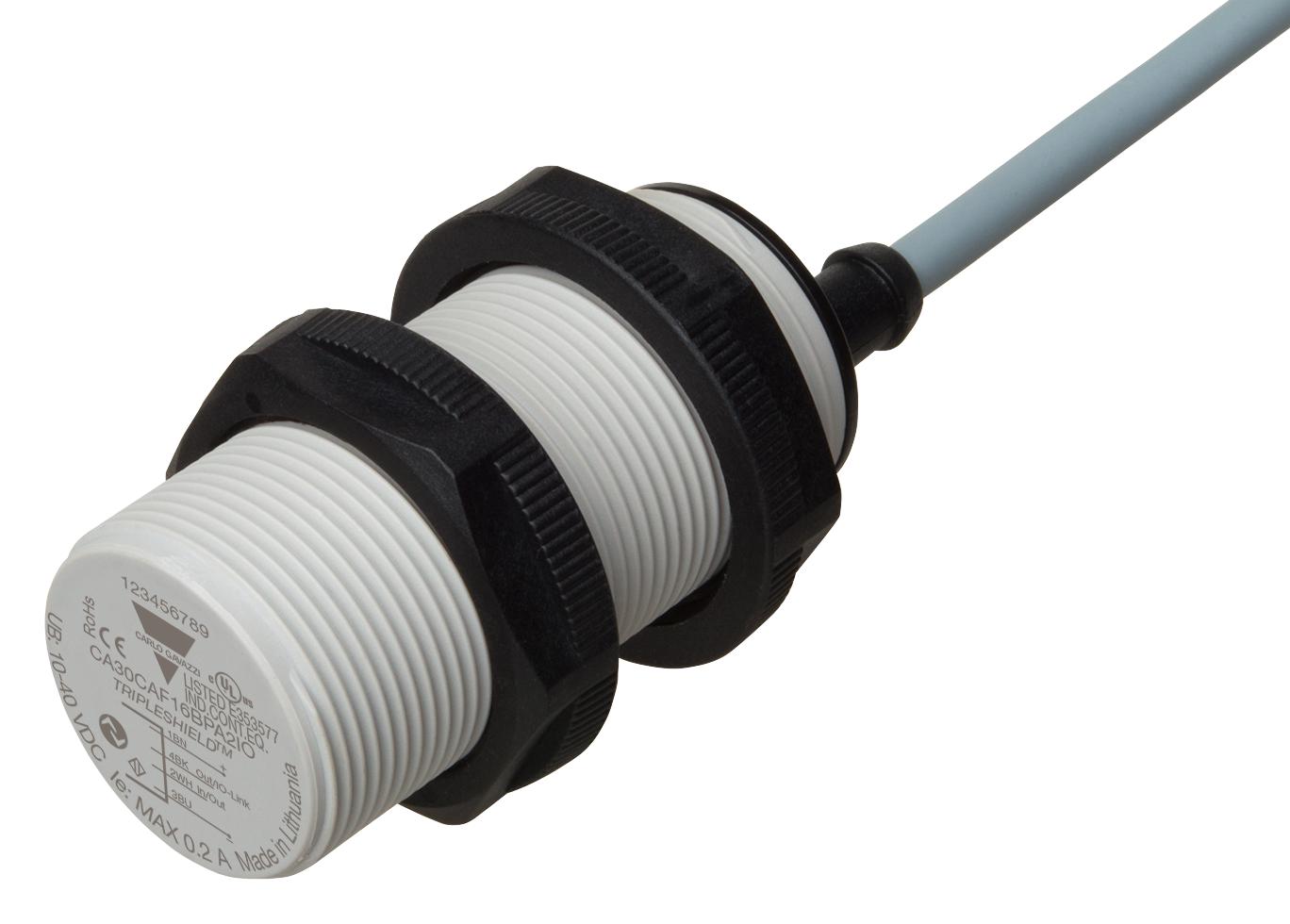

CARLO GAVAZZI CA30CAF16BPA2IO Capacitive Proximity Sensor
The CA30CAF16BPA2IO is a robust capacitive proximity sensor designed for diverse industrial applications, including detection of solid and liquid targets. Its IP69K rating ensures durability under high-pressure wash-down conditions, and it features the innovative TRIPLESHIELD™ technology for enhanced EMI immunity, humidity, and dust resistance. The sensor supports IO-Link communication, enabling easy configuration, diagnostics, and integration with automation systems. Suitable for plastic, rubber, agriculture, and food industries, it offers precise sensing in flush or non-flush mountings with adjustable parameters and multiple detection modes.
CARLO GAVAZZI CA30CAF16BPA2IO Capacitive Proximity Sensor Specifications:
- Housing Material: PBT, Grey, 30% glass-reinforced
- Protection Rating: IP69K, IP67, IP68/60 min.
- Operating Temperature Range: -30°C to +85°C
- Max Temperature on Sensing Face: 120°C
- Sensing Distance: 16 mm (flush), 25 mm (non-flush)
- Electrical Connection: 2m, 4-wire PVC cable, grey, oil-proof
- Connector Type: M12 x 1, 4-pin male
- Supply Voltage: 10-40 VDC, ripple included, max 510% ripple
- No Load Current: ≤20mA
- Protection: Short circuit, reverse polarity, transient, surge
- Response Time (OFF-ON): <10ms
- Response Time (ON-OFF): 10ms
- Vibration Resistance: 10-150Hz, 1mm / 15G
- Shock Resistance: 30G / 11ms
- Drop Test Height: 0.5m
- Ingress Protection: IP69K for high-pressure wash-down, IP67, IP68/60 min.
- Approval & Certifications: CE, UL, ECOLAB approval
- Dimensions: M30 x 1.5 mm thread, 45.5mm (non-flush), 59.5mm (flush)
- Weight: 190g (housing), 106g (plug version)
- Extended Features: Configurable via IO-Link, detection modes, timer functions, data logging
Buy the Gavazzi CA30CAF16BPA2IO – Reliable Capacitive Sensor for Industrial Applications
Order the Gavazzi CA30CAF16BPA2IO capacitive proximity sensor online now and benefit from its advanced features like IP69K rating, IO-Link communication, and TRIPLESHIELD™ technology. Perfect for detecting solid and liquid targets in demanding industrial environments such as food, beverage, agriculture, and plastic industries, this device ensures high reliability and easy configuration. With customizable mounting and detection modes, it is ideal for automation and process control, providing precise, resilient, and easy-to-implement target detection for your manufacturing process.
Buy Gavazzi CA30CAF16BPA2IO now and experience unmatched durability, precision, and seamless integration in harsh industrial environments.
