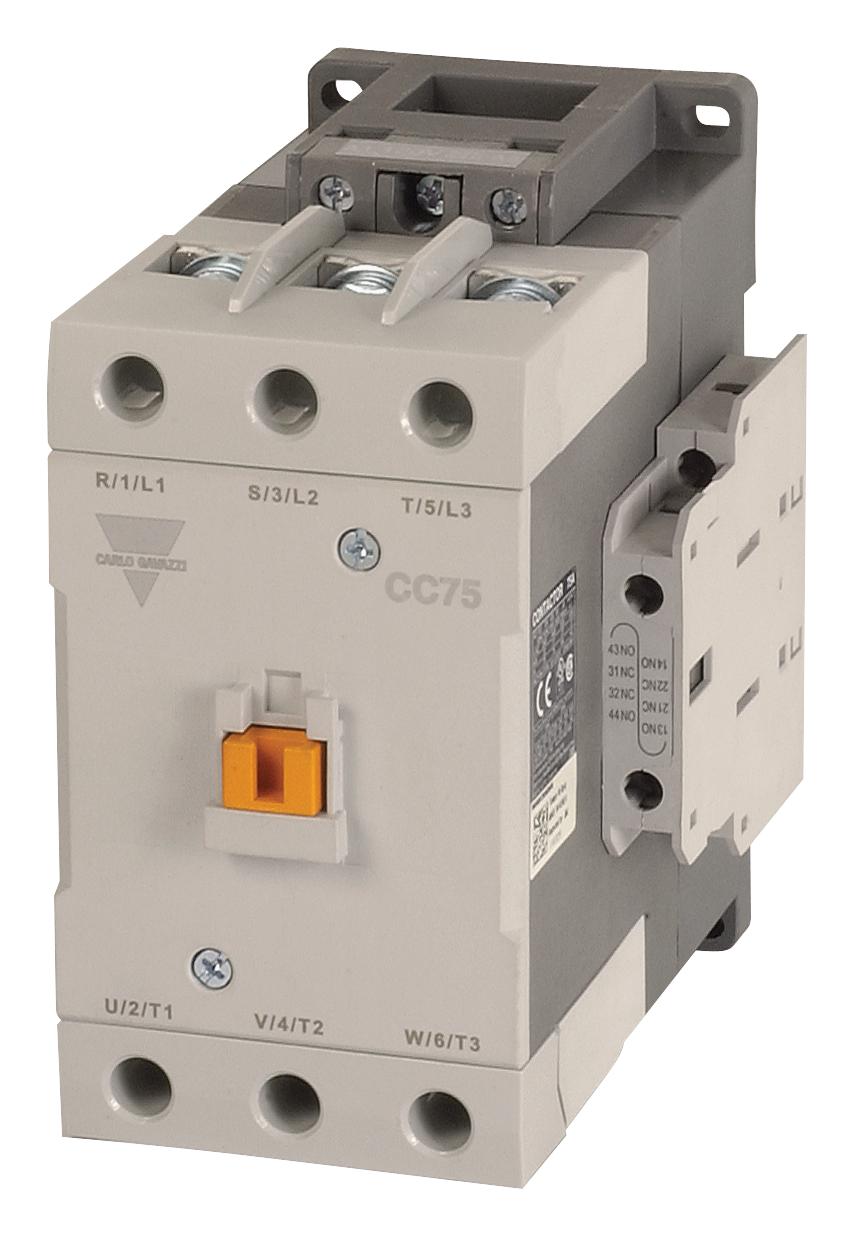

CARLO GAVAZZI CC75LA120 Industrial Contactor
The CC75LA120 is a versatile contactor designed for industrial automation and control applications. Featuring a 3-pole configuration and screw clamp terminals, it operates at a rated voltage of 690V with an impulse withstand voltage of 6kV. It supports both AC and DC control voltages and includes a built-in auxiliary contact for enhanced functionality. Its robust construction ensures high durability with 1.2 million mechanical operations, making it suitable for demanding operational environments and various motor control tasks.
CARLO GAVAZZI CC75LA120 Industrial Contactor Specifications:
- Type: Midi-Contactor
- Number of Poles: 3-pole
- Terminal Type: Screw Clamp
- Rated Operational Voltage: 690V
- Rated Insulation Voltage: 690V
- Rated impulse withstand voltage: 6kV
- Maximum Operating Rate: 1800 operations per hour
- Durability: Mechanical 1.2 million operations, Electrical 2 million operations
- Control Coil Voltage: 24V, 48V, 110V, 220V, 380V, 440V, 480V, 600V AC, and 24V, 48V, 110V, 220V, 250V DC
- Control Voltage Limit: 85~110% pick-up, 30~60% drop-out
- Coil Power Consumption: AC 230V Inrush 110/104 VA, Holding 13/10 VA; DC 24V Inrush 18 VA, Holding 9 VA
- Dimensions: 79 x 106 x 149 mm (W x H x D)
- Weight: 1.3 kg
- Standards: IEC/EN 60947-4-1, UL508, CE Certified
- Environmental Conditions: Storage -50°C to +80°C, Operation -5°C to +60°C, Operating altitude up to 3000m
- Degree of Protection: IP20
- Ambient Humidity: up to 95% non-condensing
Buy the Buy Gavazzi CC75LA120 Part Number CC75LA120 Online
Secure your automation needs with the Gavazzi CC75LA120 contactor, featuring high durability and versatile control options. Whether for motor control or switching applications, this 3-pole contactor ensures reliable operation at a rated voltage of 690V. It supports various control voltages and includes auxiliary contacts for expanded functionality. Designed for demanding industrial environments, it is easy to install with screw clamp terminals, complies with IEC and UL standards, and offers long service life. Purchase online now for fast delivery and trusted performance.
Order your Gavazzi Series CC75LA120 contactor today and equip your automation projects with reliable control and high durability.
