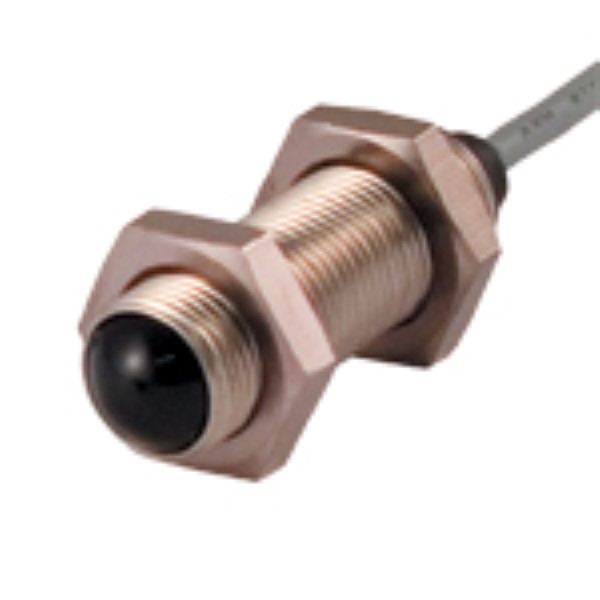

CARLO GAVAZZI PA12BNT20 Through Beam Sensor Set
The CARLO GAVAZZI PA12BNT20 is a through-beam sensor set specifically engineered for demanding applications such as elevators, escalators, and entrance control systems. Known for its high long-term reliability, this sensor set incorporates a mute input on the emitter to facilitate evaluation of the sensor's functionality. Available in a 10-30 VDC version, the PA12BNT20 provides robust and reliable sensing capabilities. Its robust housing ensures durability in challenging environments, making it suitable for a wide range of industrial applications.
CARLO GAVAZZI PA12BNT20 Through Beam Sensor Set Specifications:
- Range: 20 m
- Supply Voltage: 10 to 30 VDC
- Output: 100 mA, NPN or PNP
- Protection: Reverse polarity, short circuit, transients
- Light Source: LED, 860 nm
- Light Type: Infrared, modulated
- Light Spot: 1580 mm @ 12 m
- Emitter Angle: ± 3.8° @ 12 m
- Rated Operational Voltage (UB): 10 to 30 VDC
- Ripple (Urrp): ≤ 10%
- Supply Current: ≤ 20 mA
- Power ON Delay (tv): ≤ 100 ms
- Blind Zone: None
- Temperature Drift: ≤ 0.4%/°C
- Hysteresis (H): 3 - 20%
- No Load Supply Current (Io): ≤ 16 mA
- Output Current (Continuous): ≤ 100 mA
- Output Current (Short-time): ≤ 100 mA
- Minimum Operational Current (Im): 0.5 mA
- OFF-state Current (Ir): ≤100µA
- Voltage Drop (Ud): ≤ 1.6 VDC @ 100 mA
- Ambient Light: > 20.000 Lux
- Detection Angle: ± 2.9° @ 12 m
- Operating Frequency (f): 100 Hz
- Response Time (OFF-ON): ≈ 6.5 ms
- Response Time (ON-OFF): ≈ 3.5 ms
- Overvoltage Category: III
- Pollution Degree: 3
- Degree of Protection: IP67
- Operating Temperature: -20° to +50°C
- Storage Temperature: -25° to +80°C
- Rated Insulation Voltage: 75 VDC
- Dielectric Test Voltage: 500 Vac rms
- Rated Impulse Withstand Test: 800 V
- ESPE Type: 2
- Performance Level: C
- MTTFd (worst case full sensor): 412 Years
- Electrostatic Discharge (Contact): > 12 kV
- Electrostatic Discharge (Air): > 8 kV
- Surge (Power-supply): > 1 kV
- Surge (Sensor output): > 1 kV
- Wire Conducted Disturbances: > 10 Vrms
- Power-frequency Magnetic Fields: > 30 A/m
- Vibration: 10 to 150 Hz, 1 mm / 15g
- Shock: 30 G / 11 ms
- Free Fall: 2 times from 1 m, 100 times from 0.5 m
- Housing Material (Body): M12-Stainless Steel
- Housing Material (Front): PC black
- Connection (Cable): PVC, Emitter: grey / Receiver: black, 5 m, 3 x 0.14 mm2, Ø 2.9 mm
- Weight (Emitter): 80 g
- Weight (Receiver): 80g
