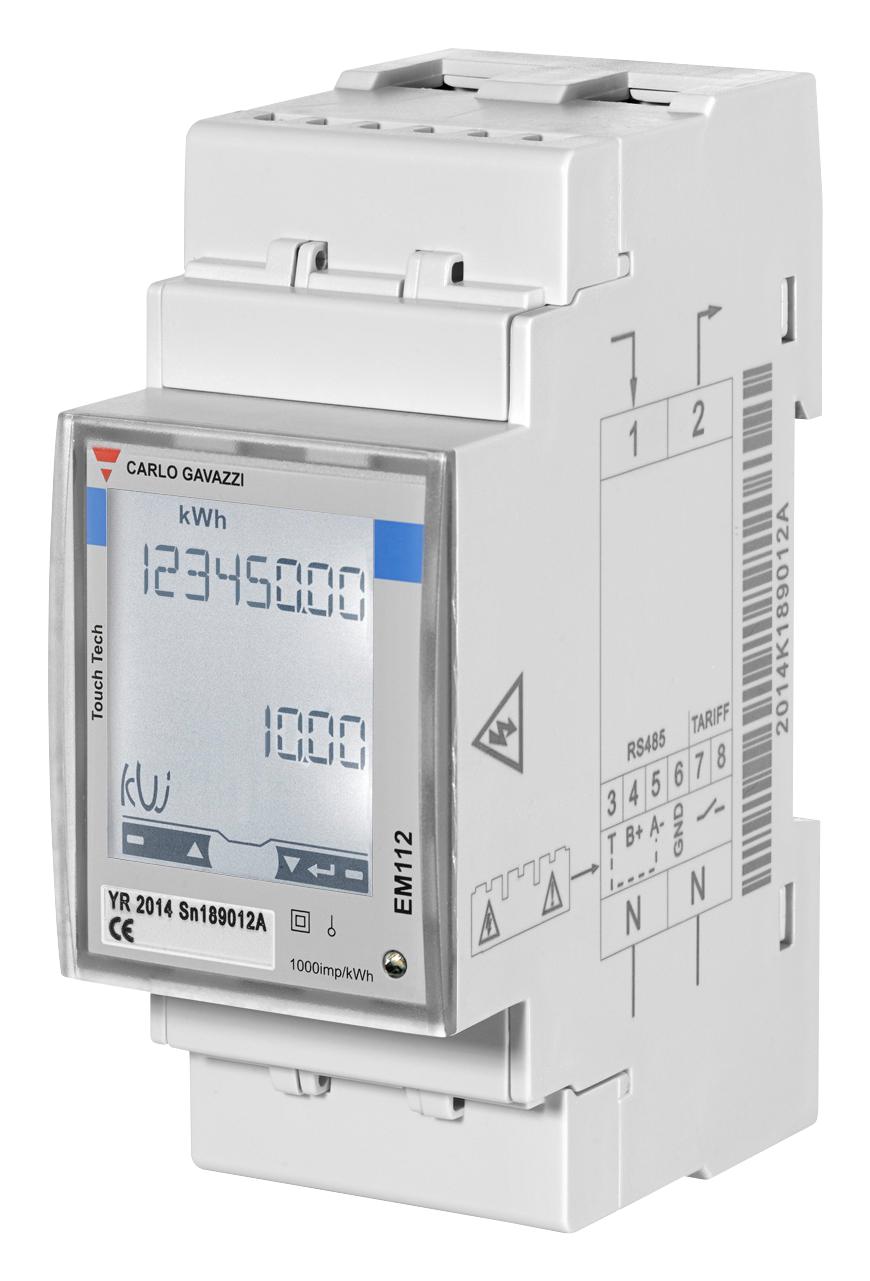

CARLO GAVAZZI EM112DINAV01XS1X Energy Analyzer
The energy analyzer is a compact, single-phase device designed for accurate active energy measurement up to 100 A. Features include a backlit LCD display with touch keypad, dual tariff management, pulse output, and optional RS485 Modbus or M-bus communication ports. It conforms to MID Directive for legal metrology, ensuring high precision with Class 1 accuracy according to EN62053-21 and Class B per EN50470-3. Suitable for energy management and cost allocation, it offers robust protection (IP51 front), easy DIN rail mounting, and detailed system variable monitoring for professional energy analysis.
CARLO GAVAZZI EM112DINAV01XS1X Energy Analyzer Specifications:
- Dimensions: 35 x 63 x 90 mm
- Protection Degree (front): IP51
- Housing Material: Noryl, self-extinguishing UL 94 V-0
- Supply Voltage: 230V AC or 120V AC, adjustable with range -30% +20%
- Current Range: 5(100)A, start-up current 40mA
- Accuracy: Class 1 (active energy), Class B (reactive energy)
- Display: Backlit LCD, 3x8 digits, 5mm height
- Communication: RS485 Modbus (optional), M-bus (optional)
- Pulse Output: Open collector PNP, 30 or 100 ms duration, max 2000 pulses/kWh
- Environmental: -25°C to +65°C operating temperature, humidity up to 90% non-condensing
- Protection: Overvoltage category III, insulation 4000 VAC RMS for 1 min
- Input Impedance: Voltage: 1.2 MΩ, Current: <1.25 VA at 5(100)A
- Weight: Approx. 160g
- Standards: EN62052-11, EN62053-21, EN50470-3, MID compliance (PF option only)
Buy the Buy Carlo Gavazzi Energy Analyzer Part Number EM112DINAV01XS1X Online
Order the Carlo Gavazzi Energy Analyzer online today to ensure precise energy measurement for your installation. Featuring a high-resolution backlit display, dual tariff management, pulse output, and optional RS485 Modbus or M-bus communication, this device supports legal metrology standards. Its robust IP51 protection and DIN rail mounting make it ideal for industrial, commercial, or energy management applications. Enjoy easy connection, reliable performance, and detailed energy analysis to optimize your energy usage efficiently.
Buy Carlo Gavazzi EM112DINAV01XS1X now and experience unmatched reliability and performance in energy measurement with advanced tariffs and communication options.
