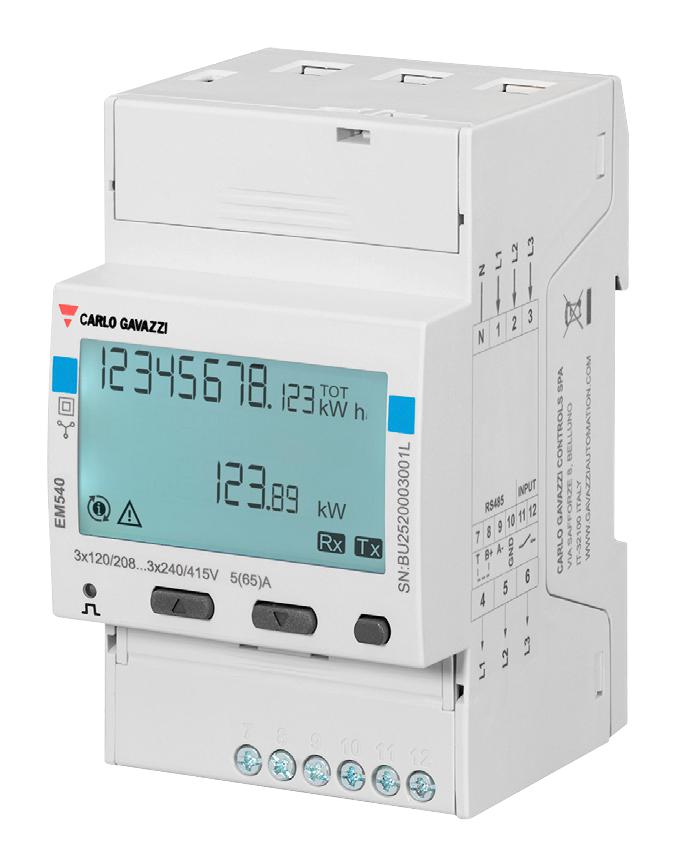

CARLO GAVAZZI EM540DINAV23XO1X Energy Analyser
EM540 is a high-precision energy analyser designed for quick, accurate measurement of active, reactive, and apparent energy in three- and two-phase low-voltage systems up to 415 V. It features a backlit LCD display, intuitive interface with mechanical keys, and supports Modbus RTU and M-Bus communication protocols. The device meets IEC/EN standards, including MID certification for fiscal metrology, and can be installed in various configurations such as without neutral or in wild-leg systems. It is ideal for energy monitoring, billing, and early malfunction detection.
CARLO GAVAZZI EM540DINAV23XO1X Energy Analyser Specifications:
- Housing Material: PBT
- Display: Backlit LCD, 8+3 digit energy readout
- Protection Degree: IP40 front, IP20 terminals
- Mounting: DIN rail, 3 modules wide
- Rated Voltage L-N: 120-230 V, L-L: 208-400 V
- Overvoltage Category: III, Pollution Degree: 2
- Measurement Inputs: Direct connection, 2.5 mm² to 16 mm² terminal range
- Current Inputs: 5A base, max 65A, overcurrent protection 30x Imax for 10 ms
- Power Supply: Self-powered, <1.3 W
- Communication: Modbus RTU RS485, M-Bus (max 250 devices)
- Digital Inputs: 1, 5 Vdc, open contact, max 30 V ac
- Digital Outputs: 1, opto-MOSFET, pulse or alarm, max 100 mA
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -25°C to +70°C
- Dimensions: 3 DIN modules high, approx 62.4 mm wide
- Weight: 370 g
Buy the Gavazzi EM540U– Reliable Energy Analyser for Industrial Applications
Discover the Carlo Gavazzi EM540 energy analyser, a versatile and highly accurate device designed for monitoring energy consumption, electrical variables, and harmonic distortion. Its MID certification allows for fiscal metrology use, making it perfect for billing in residential, commercial, or industrial environments. Easy to install on DIN rails, it supports multiple communication protocols including Modbus RTU and M-Bus for seamless integration into building management systems. Improve energy efficiency, diagnose issues early, and ensure compliance with regulatory standards with this reliable measurement solution.
Buy Carlo Gavazzi EM540 energy analyser now and enhance your energy monitoring with reliable readings, smart communication options, and flexible installation.
