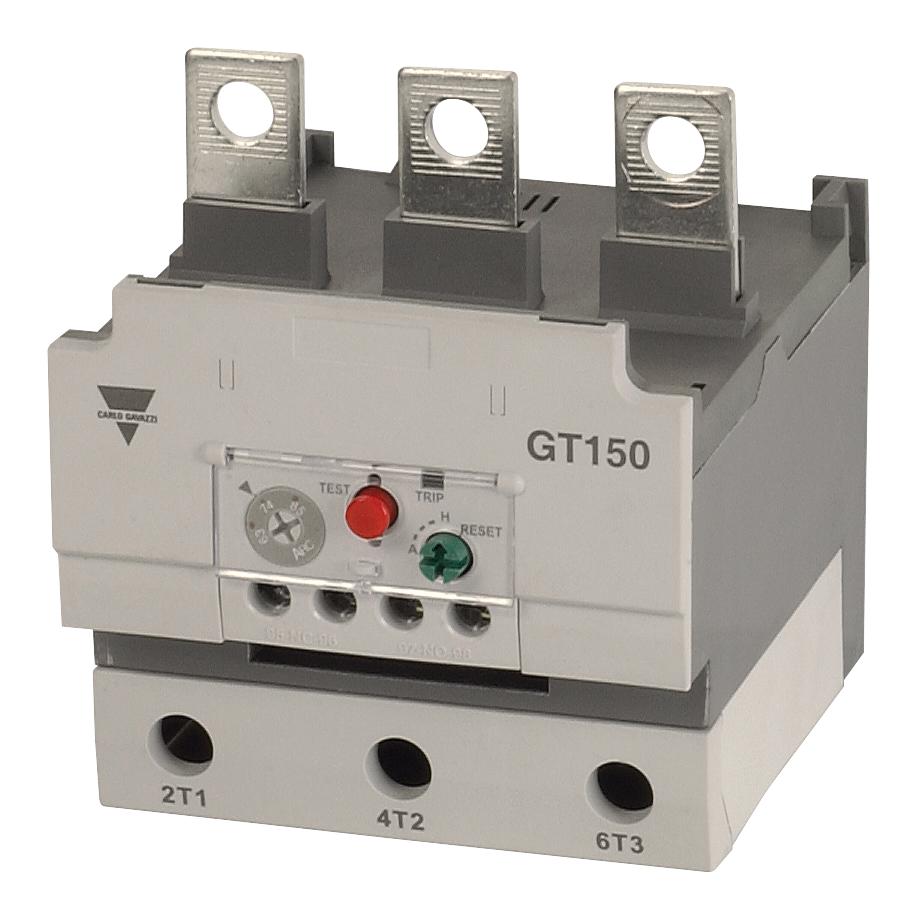

CARLO GAVAZZI GT150L105A Bimetallic Overload Relay
The GT150L105A is a bimetal thermal overload relay designed for industrial motor protection. It features a trip class of 10, rated operational voltage of 690V, and an insulation voltage of 690V. Suitable for application with contactors up to 250A, it includes manual and automatic reset functions, trip indicating, and optional separate mounting units. Its robust construction supports operation in harsh environments, providing reliable overload protection with adjustable settings for different motor currents, complying with IEC standards and suitable for manufacturing and automation systems.
CARLO GAVAZZI GT150L105A Bimetallic Overload Relay Specifications:
- Type: Bimetallic thermal overload relay
- Trip class: 10
- Rated operational voltage: 690V
- Rated insulation voltage: 690V
- Rated impulse voltage: 6kV
- Degree of protection: IP 20
- Temperature compensation: -5 to +40°C
- Functions: Trip indication, stop, test, manual/automatic reset
- Setting range: 34~150A
- Nominal current rating: 42A, 55A, 65A, 74A, 80A, 93A, 107A, 113A, 130A, 153A, 200A, 265A, 350A, 515A, 660A
- Wire size: AWG 10-8 to 10-10
- Terminal type: Screw clamp or lug
- Number of poles: 3
- Application: Suitable for contactors up to 250A, with separate mounting options, supporting IEC standards, CE, UL, CSA certifications
Buy the Gavazzi Series GT150 Bimetallic Overload Relay: GT150L105A
Purchase the Gavazzi GT150L105A overload relay online today. Engineered for durability and precise overload protection, it features manual and automatic reset options, trip indication, and adjustable current settings up to 150A. Perfect for industrial motor applications, it complies with IEC standards and offers reliable performance in harsh environments. Secure your motor’s safety with this high-quality thermal overload relay—designed for seamless integration with contactors up to 250A. Order now for fast delivery and peace of mind in your automation system.
Get Gavazzi GT150L105A today—built for reliable motor overload protection with manual and auto reset features.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI GT150L105A?
You can click on the BUY or RFQ button to purchase GT150L105A from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part GT150L105A?
You can download the GT150L105A datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of GT150L105A?
CARLO GAVAZZI
