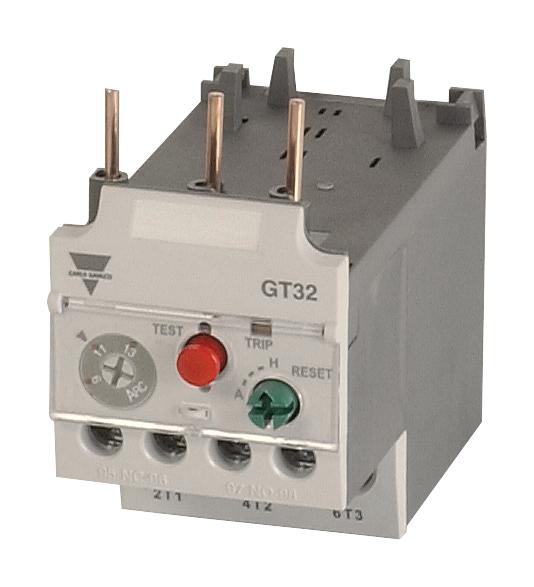

CARLO GAVAZZI GT32S40A Thermal Overload Relay
The GT32S40A is a thermal overload relay designed for industrial motor protection. It features a screw clamp terminal type, rated operational voltage up to 690V, and a trip class 10A suitable for AC circuits. The device offers manual and automatic reset functions, a trip indicator, and a temperature compensation range of -5 to +40°C. With a high degree of protection IP20, it is compatible with contactors for effective overload management in demanding environments, ensuring safety and operational reliability.
CARLO GAVAZZI GT32S40A Thermal Overload Relay Specifications:
- Trip class: 10A
- Type: Differential type
- Terminal type: Screw Clamp or Lug
- Number of poles: 3
- Rated operational voltage: 690V
- Rated insulation voltage: 690V
- Rated impulse voltage: 6KV
- Degree of protection: IP 20
- Temperature compensation: -5 to +40°C
- Functions: Trip indicating, Stop, Test, Manual/Automatic Reset
- Setting range: 34~150A
- Nominal current rating: 42A, 55A, 65A, 74A, 80A, 93A, 107A, 113A, 130A, 153A, 200A, 265A, 350A, 515A, 660A
- Wire size: 10-8 AWG
- Connection: Screw Clamp or Lug
- Rated operation current: 0.14-83A depending on model
- Rated insulation voltage: 690V
- Rated impulse voltage: 6KV
- Degree of protection: IP20
- Mounting: Separate mounting unit compatible
- Standards: IEC/EN 60947-1, IEC/EN 60947-4-1
- Certifications: CE, CSA, UL
Buy the Gavazzi GT32S40A – Reliable Thermal Overload Protection for Industrial Applications
Secure your motor protection with the Gavazzi GT32S40A thermal overload relay. It offers precise overload detection, easy manual or automatic reset, and high protection standards. Designed for industrial applications, it ensures reliable operation within maximum voltage of 690V and features trip class 10A. Easy to install with screw clamp terminals, it enhances equipment safety and operational efficiency. Purchase online today and safeguard your motor systems effortlessly, benefiting from robust construction and compliance with international standards.
Buy Gavazzi GT32S40A now and experience unmatched reliability and performance in motor overload protection, ensuring safety in industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI GT32S40A?
You can click on the BUY or RFQ button to purchase GT32S40A from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part GT32S40A?
You can download the GT32S40A datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of GT32S40A?
CARLO GAVAZZI
