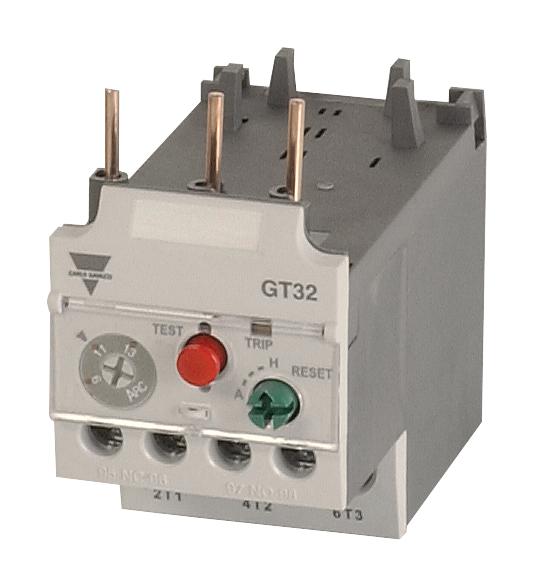

CARLO GAVAZZI GT32S4A Motor Overload Relay
The GT32S4A is a thermal overload relay designed for protection against motor overloads and phase failure. It features a screw clamp terminal type, three poles, and a differential trip class 10. Rated operational voltage is up to 690V, with an insulation voltage of 690V. The device includes manual or automatic reset functions, trip indication, and a stop/test button. Suitable for controlling AC motors, it complies with IEC standards, offering reliable thermal trip functions and easy integration into control panels for industrial applications.
CARLO GAVAZZI GT32S4A Motor Overload Relay Specifications:
- Number of poles: 3
- Rated operational voltage: up to 690V
- Rated insulation voltage: 690V
- Rated impulse voltage: 6kV
- Temperature compensation: -5 to +40°C
- Degree of protection: IP 20
- Functions: Trip indicating, stop, test, manual/automatic reset
- Wire size: 16-25 mm² (AWG 6-14)
- Operating current range: 34-50A
- Trip class: 10
- Terminal type: Screw Clamp or Lug
- Application: Motor overload protection for contactors
- Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, CE, UL, CSA
Buy the Gavazzi Series GT Series GT32S4A: Motor Overload Relay
Protect your motors efficiently with the Gavazzi Series GT32S4A overload relay. Featuring a 3-pole design, manual/auto reset options, and rated for up to 690V, this relay is suitable for industrial control panels. It provides precise thermal overload detection, trip indication, and complies with IEC standards for safety and performance. Easy to wire with screw clamp terminals and robust construction, it ensures reliable operation in demanding environments. Perfect for controlling AC motors in manufacturing and automation systems.
Order your Gavazzi Series GT32S4A overload relay today and ensure dependable motor protection with easy installation and reliable trip functions.
