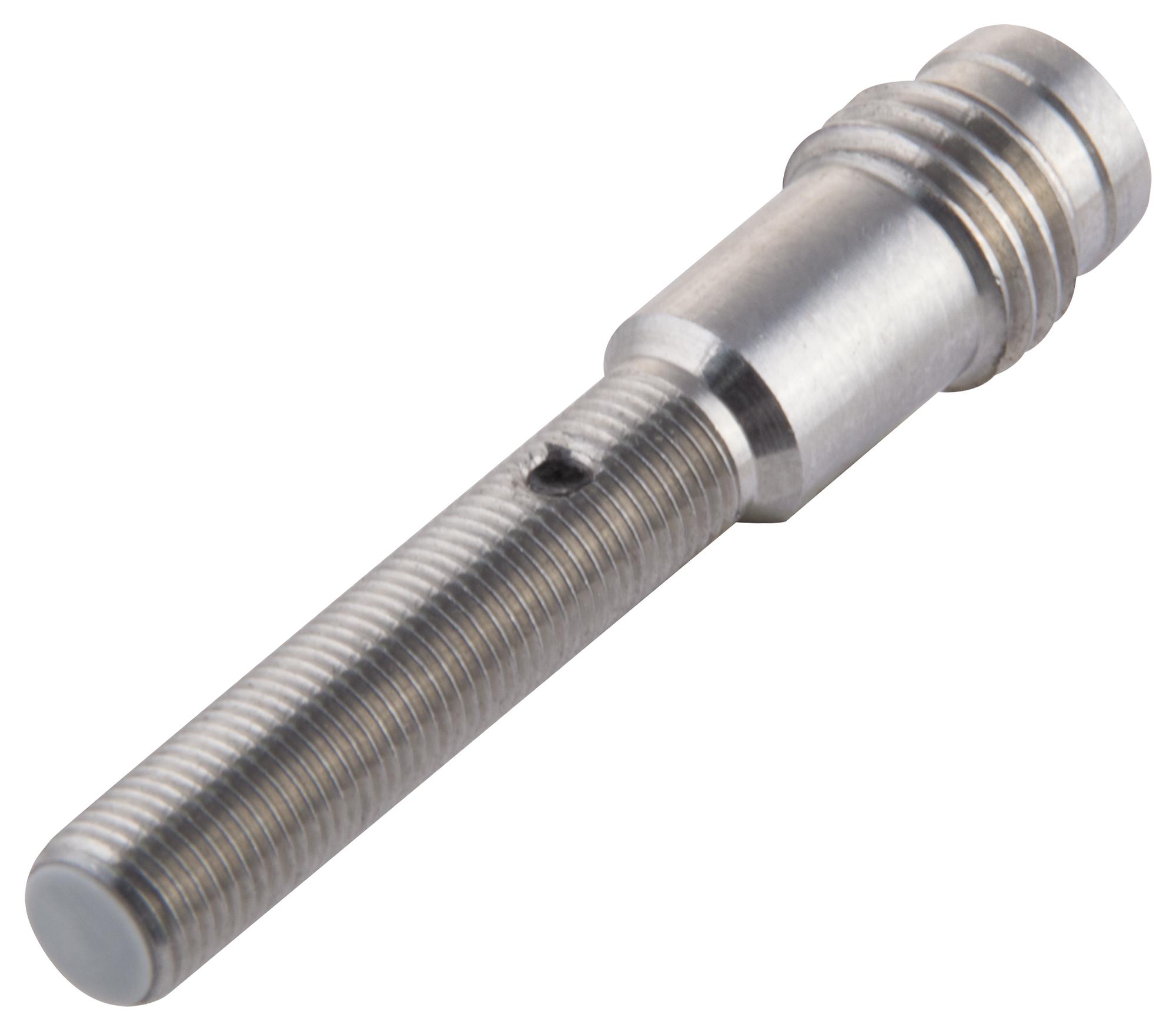

CARLO GAVAZZI ICS05S23F15M5NO Inductive Proximity Sensor
The ICS05 proximity sensor is a compact, stainless steel inductive device with IO-Link communication, designed for industrial automation in space-constrained environments. It features a robust housing, high switching frequency up to 6 kHz, and adjustable sensing distances of 0.8mm or 1.3mm. Equipped with configurable IO-Link settings, including PNP/NPN outputs, hysteresis, delay timers, and temperature monitoring, the sensor offers easy installation and customization for various OEM needs. Ideal for metal object detection, position sensing, and rotational speed measurement, it ensures high reliability and environmental stability from -25°C to +70°C.
CARLO GAVAZZI ICS05S23F15M5NO Inductive Proximity Sensor Specifications:
- Supply Voltage: 10 to 30 VDC
- Output: NPN/PNP, configurable via IO-Link
- Output Current: Up to 100 mA
- Voltage Drop: Max. 1.2 VDC @ 100 mA
- Response Time: Up to 6 kHz
- Detection Distance: 0.8 mm or 1.3 mm, adjustable via IO-Link
- Hysteresis: Standard or increased (programmable)
- Temperature Range: -25°C to +70°C
- Protection: IP67, short-circuit, reverse polarity
- Housing: Stainless steel AISI 304
- Connector: 2 m PVC cable or M8 quick disconnect
- Vibration & Shock Resistance: IEC 60068-2-6 / IEC 60068-2-27
- Degree of Protection: IP67
- EMC: IEC 61000 series standards
- Dimensions: Length varies with version, typical 25-38 mm, diameter 4-5 mm
- Additional Features: Flashing LED for diagnostics, adjustable sensing and hysteresis via IO-Link
Buy the Buy Carlo Gavazzi Inductive Proximity Sensor Part Number ICS05S23F15M5NO Online
Purchase the Carlo Gavazzi inductive proximity sensor with IO-Link communication for precise metal detection in automation setups. Its stainless steel housing ensures durability and IP67 protection for harsh environments. The sensor supports adjustable sensing distances of 0.8mm or 1.3mm, programmable hysteresis and delay timers, and comes with versatile output configurations. Easy to install with either a 2m PVC cable or M8 connector, it offers fast response times up to 6 kHz, making it ideal for position sensing, rotational speed monitoring, and reliable metal object detection in industrial applications.
Order your Carlo Gavazzi Series ICS05 proximity sensor with adjustable sensing distance and high-speed detection today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS05S23F15M5NO?
You can click on the BUY or RFQ button to purchase ICS05S23F15M5NO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS05S23F15M5NO?
You can download the ICS05S23F15M5NO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS05S23F15M5NO?
CARLO GAVAZZI
