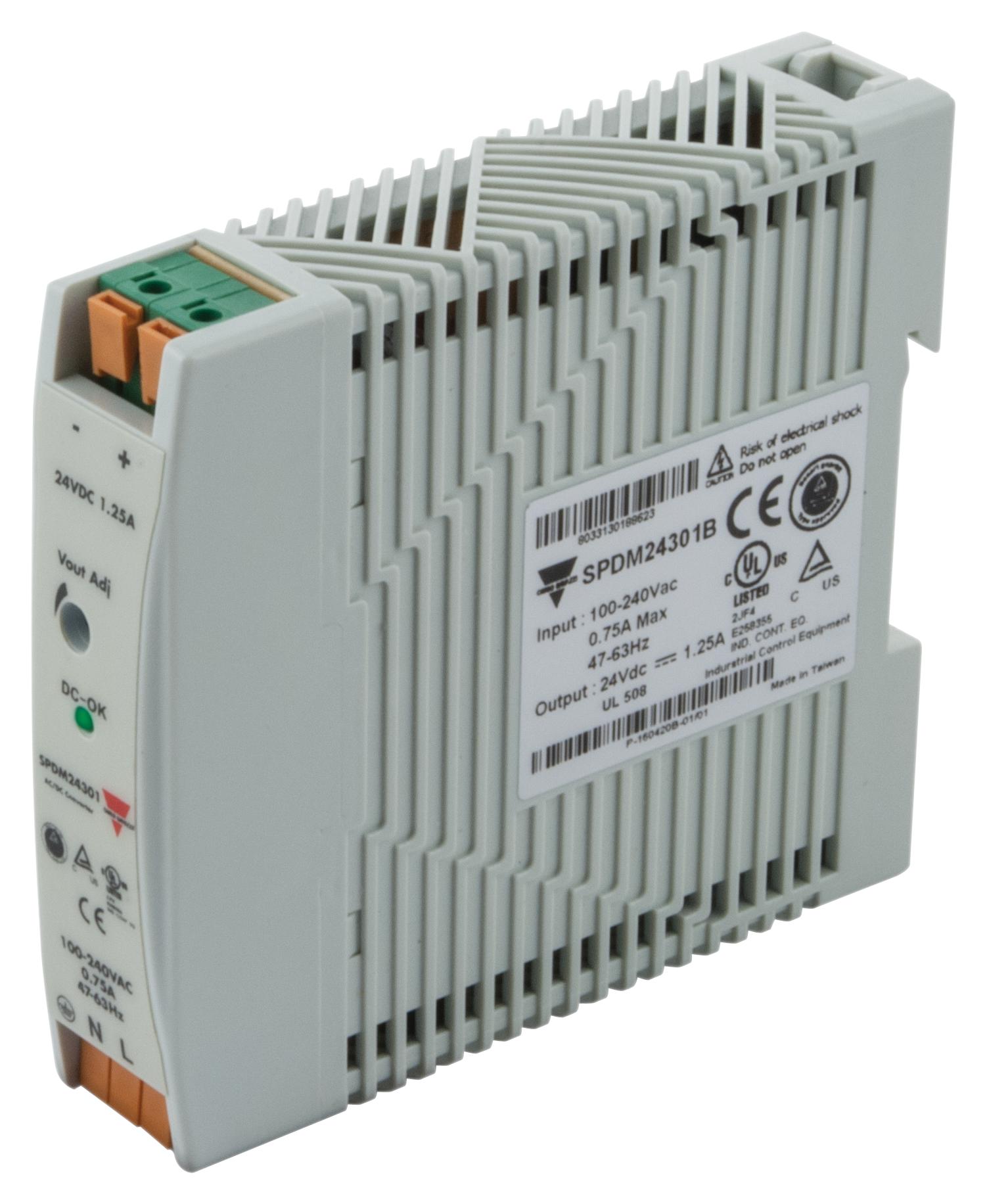

CARLO GAVAZZI SPDM24301B industrial power supply
The SPDM Series switching power supplies are compact, efficient, and designed for DIN rail installation in automation applications, offering 30W power with either 12VDC or 24VDC outputs. They feature universal input voltage (85~264VAC), high efficiency up to 86%, short-circuit protection, and internal input filters. These power supplies have low standby power consumption, an IP20 degree of protection, and operate within an ambient temperature range of -25°C to +71°C. They are built for reliability, with an MTBF of over 720,000 hours, and include protections against overload, overvoltage, and short circuits. The units are suitable for industrial environments, with robust insulation and compliance with safety standards.
CARLO GAVAZZI SPDM24301B industrial power supply Specifications:
- Input Voltage Range: 85~264VAC, 120~375VDC
- Output Power: 30W
- Output Voltage: 12VDC or 24VDC
- Output Current: 2A at 12V, 1.25A at 24V
- Efficiency: Up to 86%
- Short Circuit Protection: Yes, hiccup mode
- Over Voltage Protection: 12V (16.2~18V), 24V (28.8~32.4V)
- Operating Temperature: -25°C to +71°C
- Dimensions: 90 x 100 x 22.5 mm
- MTBF: Over 720,000 hours
- Universal Input Voltage: 85~264VAC
- Inrush Current: 20/40A at 115/230VAC
- Power Dissipation: 4.9W at 12V, 5.7W at 24V
- Protection Class: IP20
- Isolation Voltage: Input-Output 3000V, Input-FG 4242V, Output-FG 710V
- Insulation Resistance: 100 MΩ at 500VDC
- Storage Temperature: -40°C to +85°C
- Weight: 140g
Buy the Carlo Gavazzi SPDM12301B – Reliable Power Supply for Industrial Applications
Discover the Carlo Gavazzi SPDM Series 30W industrial power supply, designed for seamless DIN rail installation in automation and industrial environments. It features universal input voltage (85~264VAC), high efficiency up to 86%, and comprehensive protections including short circuit, overload, and overvoltage. Its compact size measures 90 x 100 x 22.5 mm, ideal for limited spaces, with a robust build for reliability over extended operational hours. Easily connect via spring or screw terminals, making it the perfect choice for your automation setup. Purchase online today for a reliable power solution that ensures optimal performance and durability.
Get Carlo Gavazzi SPDM12301B today—built for precision and long-lasting durability in automation projects.
