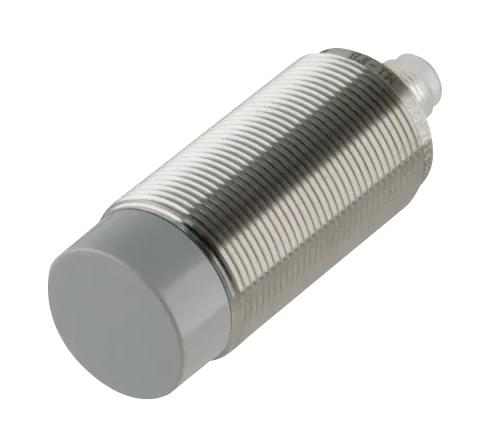

CARLO GAVAZZI ICS30LN22POM1FB Inductive Proximity Sensor
The ICS30LN22POM1FB inductive proximity sensor features stainless steel housing (AISI 316L) with IP69K rating, ideal for food and beverage applications. It offers a sensing distance of 22 mm, with flush or non-flush mount options, and is resistant to high pressure, cleaning agents, and disinfectants. Operating from 10 to 36 VDC, it provides NPN or PNP output configurations, LED indicators, and protection against reverse polarity, short circuits, and transients. Suitable for hazardous locations, it ensures reliable detection in demanding environments with an operational temperature range of -40°C to +85°C.
CARLO GAVAZZI ICS30LN22POM1FB Inductive Proximity Sensor Specifications:
- Sensing Distance: 22 mm
- Housing Material: Stainless Steel (AISI 316L)
- Ingress Protection: IP69K
- Rated Operational Voltage: 10 - 36 VDC
- Output Current: < 200 mA @ 50°C
- Output Type: NPN or PNP, Normally Open or Closed
- Temperature Range: -40°C to +85°C
- Protection: Reverse Polarity, Short Circuit, Transients
- Operating Frequency: < 1000 Hz
- Response Time: < 20 ms
- Weight: Max. 130g
- Connection: M12x1, 4-pin connector
- Certifications: IEC 60947-5-2, cULus, En Process Control, Class I, Division 2
- Sealing: Fully sealed, resistant to cleaning agents and disinfectants
- Housing Dimensions: As per diagram, length approx. 67.5 mm for short version and 79.5 mm for long version
- Dimensions: Body diameter 30 mm
- Ambient Operating Temperature: -40°C to +85°C
- Shock & Vibration: IEC 60947-5-2/7.4
Buy the Carlo Gavi Inductive Sensors: ICS Series 22mm Detection: ICS30LN22POM1FB
Discover the Carlo Gavi inductive proximity sensor with a 22mm sensing range, stainless steel housing, and IP69K rating. Designed for high-pressure cleaning and food industry use, it is robust, waterproof, and resistant to harsh chemicals. Operating from 10 to 36 VDC with NPN or PNP outputs, it features easy mounting options, LED indicators, and TÜV-certified safety standards. Perfect for hazardous locations, ensuring reliable detection in tough environments. Purchase online now to benefit from durable, precision-engineered sensors that enhance automation systems' efficiency.
Get Carlo Gavi ICS30LN22POM1FB today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS30LN22POM1FB?
You can click on the BUY or RFQ button to purchase ICS30LN22POM1FB from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS30LN22POM1FB?
You can download the ICS30LN22POM1FB datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS30LN22POM1FB?
CARLO GAVAZZI
