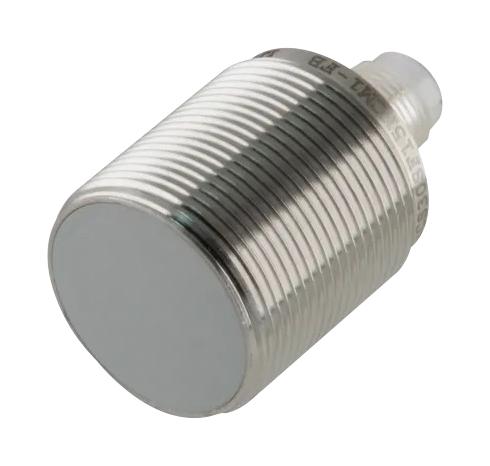

CARLO GAVAZZI ICS30SF15POM1FB Inductive Proximity Sensor
The ICS series inductive proximity sensors feature stainless steel housing (AISI 316L), ideal for food and beverage applications requiring high-pressure washdowns. Certified by Ecolab and FDA, they resist acids and disinfectants, ensuring durability and hygiene. These sensors offer sensing distances from 10 to 22 mm, with options for flush or non-flush mounting, short or long bodies, and PNP or NPN outputs. Rated for operating voltages of 10-36 VDC, they include LED indicators, reverse polarity, short-circuit, and transient protection, with an IP69K and IP68 ratings suitable for harsh environments.
CARLO GAVAZZI ICS30SF15POM1FB Inductive Proximity Sensor Specifications:
- Housing Material: Stainless steel (AISI 316L)
- Sensing Distance: 10 to 22 mm
- Operating Voltage: 10 - 36 VDC
- Output: DC 200 mA, NPN or PNP
- Protection: Reverse polarity, short circuit, transients
- Ingress Protection: IP69K, IP68
- Temperature Range: -40°C to +85°C
- Shock and Vibration: IEC 60947-5-2/7.4
- Connection: M12 plug, 4-wire
- Dimensions: 47.5 mm length, 30 mm diameter
- Repeat Accuracy: 55%
- Differential Travel (Hysteresis): 1 to 20% of sensing distance
- Ambient Temperature: -25°C to +60°C
- Tightening Torque: 75 Nm
- Certifications: CE, UL, CSA (hazardous locations)
- Housing Protection: IP67, IP68, IP69K
Buy the EcoLab Series ICS Inductive Proximity Sensor: ICS30SF15POM1FB
Order the EcoLab certified inductive proximity sensor online today to ensure your food and beverage processing line operates with reliable sensing even under tough cleaning conditions. Featuring stainless steel construction, IP69K/IP68 ratings, and adjustable sensing distances from 10 to 22 mm, these sensors are designed for hygienic workplaces exposed to high-pressure water, acids, and disinfectants. With easy wiring, LED indicators, and robust protection features, purchasing online guarantees swift delivery and durable performance for your industrial automation needs.
Buy EcoLab Series ICS inductive proximity sensor with high-pressure washdown resistance and stainless steel housing now and experience unmatched reliability and performance.
