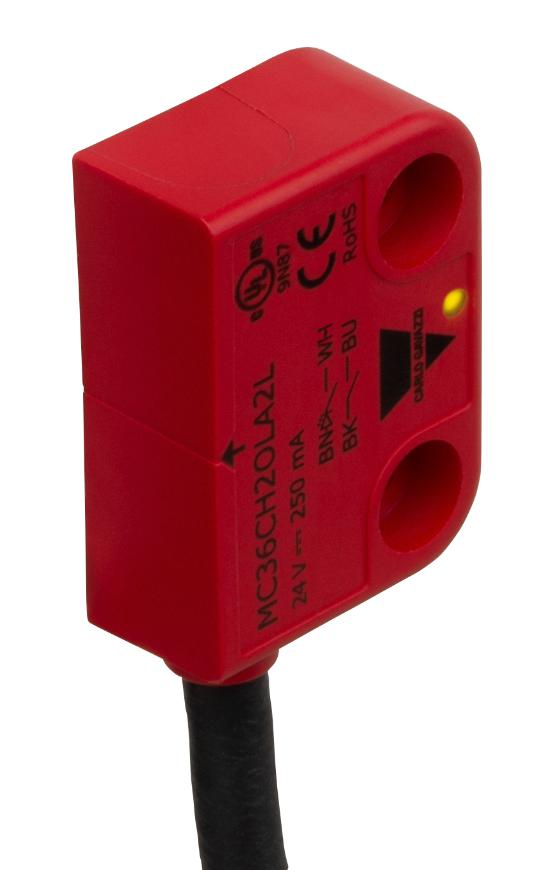

CARLO GAVAZZI MC36CH1O1CLA2L Safety Magnetic Sensor
The MC36C safety magnetic sensors are compact, encoded sensors designed for industrial safety applications. They monitor hinged or sliding guards, stopping dangerous motions when protections are opened or displaced. Featuring reinforced polymer casing with IP67 ingress protection, operating from -25°C to +80°C, and available with various outputs including 2NO or 1NO + 1NC, these sensors are ideal for harsh environments. They are compliant with EN ISO 13849-1 standards, suitable for safety category 4, and are used in safety gate monitoring. The sensors support contactless actuation, making them durable and dust-resistant for demanding industrial setups.
CARLO GAVAZZI MC36CH1O1CLA2L Safety Magnetic Sensor Specifications:
- Housing Material: PBT
- Protection Degree: IP67
- Operating Temperature: -25°C to +80°C
- Detection Distance: 5mm with MC36CM actuator
- Switch-off Distance: 15mm with MC36CM actuator
- Dimensions: 36 x 26 x 13 mm
- Electrical Output Types: 2NO or 1NO + 1NC
- Rated Operating Voltage: 12-24 Vac/dc
- Rated Operating Current: 0.25 A resistive load
- Max Switching Load: 6 W resistive
- Response Time: < 10 ms
- Max Operating Frequency: 100 Hz
- Vibration Resistance: 10 g (EN 60068-2-6)
- Shock Resistance: 30.9 msec (EN 60068-2-27)
- Ingress Protection: IP67
- Standards Compliance: EN ISO 13849-1, EN 60529, IEC 60947-5-1
- Connection Options: PVC cable (2m, 4 x 0.25 mm²), M8 connector
- Weight: 35-75 grams
- Conforms to: CE, cULus, RoHS
Buy the Buy Carlo Gavazzi Safety Magnetic Sensors Part Number MC36CH1O1CLA2L Online
Discover the reliable Carlo Gavazzi safety magnetic sensor with IP67 protection. Ideal for harsh environments, it features contactless actuation, quick response times, and compliance with safety standards. Perfect for safety gate monitoring in industrial settings, it supports various output configurations and connection options, ensuring flexible installation. Purchase online today to enhance your safety systems with high durability and precise detection, guaranteeing compliance with Category 4 safety requirements and long-lasting performance in demanding applications.
Order your Carlo Gavazzi SeriesMC36C safety magnetic sensor today and ensure reliable safety gate monitoring in harsh industrial environments.
