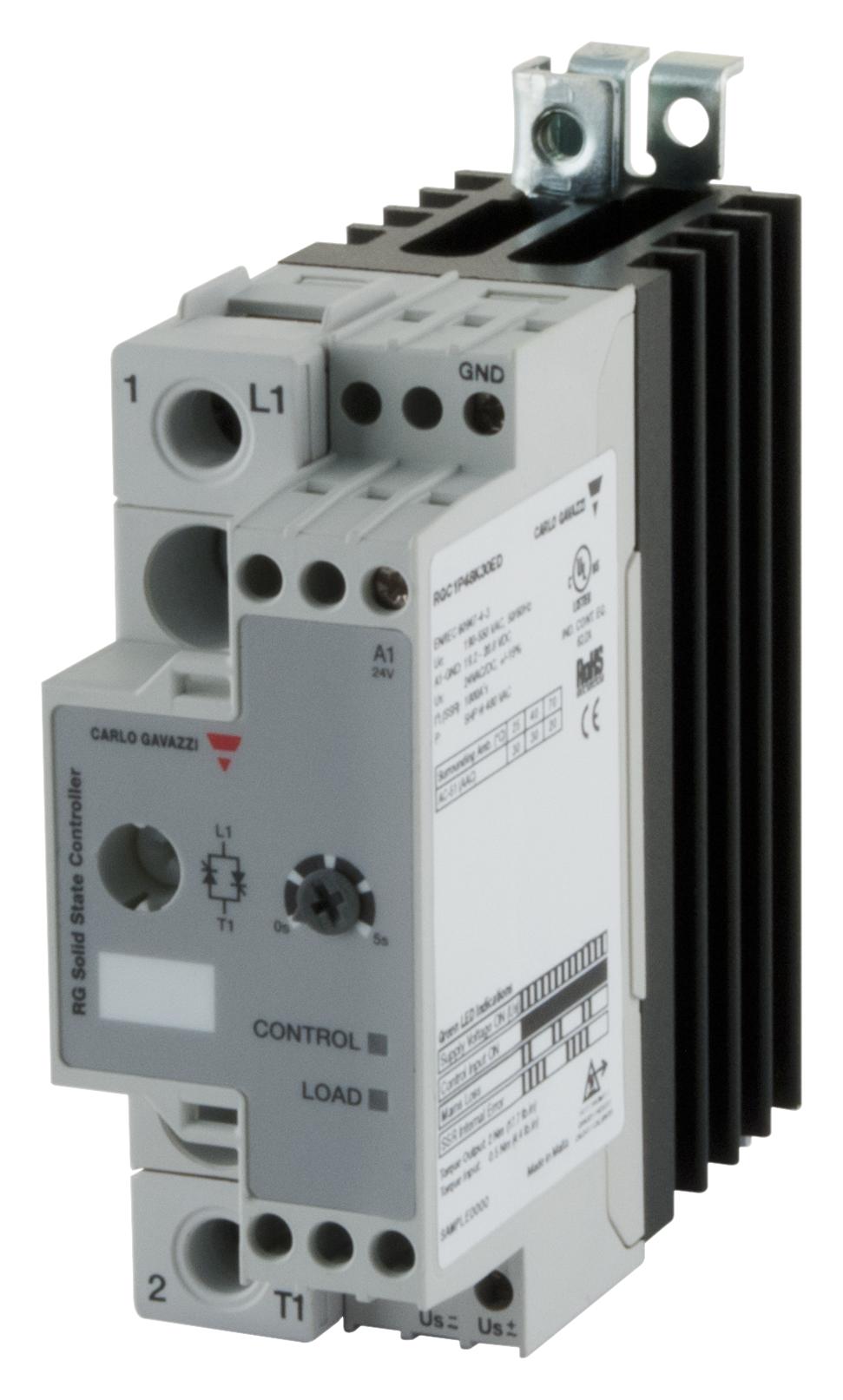

CARLO GAVAZZI RGC1P60K30ED soft start relay
The RGC1P..K series provides soft start switching for loads with high cold-to-hot resistance ratios, such as infrared heaters. It performs a soft start upon power-up or control signal loss exceeding 5 seconds, with adjustable soft start timing. Equipped with integrated varistor protection and status LEDs, it safeguards against overvoltages and ensures reliable operation. Designed for industrial use, it supports rated voltages up to 660 VAC and currents up to 63 AAC, with control inputs at 24 VDC and compact DIN or panel mounting options, suitable for controlling high-inrush loads safely and efficiently.
CARLO GAVAZZI RGC1P60K30ED soft start relay Specifications:
- Rated operational voltage: 85-265 VAC, 190-550 VAC, 410-660 VAC
- Rated operational current: 30 AAC, 50 AAC, 73 AAC
- Control input: 24 VDC
- Integrated varistor protection on output
- Power factor: > 0.7 @ rated voltage
- Operating temperature: -40°C to +70°C
- Protection degree: IP20
- UL/CSA listed, short circuit current rating: 100kArms
- Dimensions: approximately 70mm width, weight approx. 805g for the largest model
- Emergency current surge: up to 1900 A with surge capacity for high inrush loads
- Mounting: DIN rail or panel mount
Buy the Carlo Gavazzi Series RGC1P Soft Start Relay: RGC1P60K30ED
Purchase the Carlo Gavazzi soft start relay RGC1P60K30ED online today. Engineered for industrial applications, it offers reliable soft start switching, integrated overvoltage protection, and status LEDs for easy monitoring. Ideal for controlling high-inrush loads like infrared heaters, it supports voltage ranges up to 660 VAC and currents up to 63 AAC. With compact mounting options and UL/CSA certification, it ensures safety, efficiency, and long-lasting durability for your automation needs. Order now for quick delivery and superior performance.
Get Carlo Gavazzi RGC1P60K30ED today—built for precision soft start switching and high inrush load protection.
