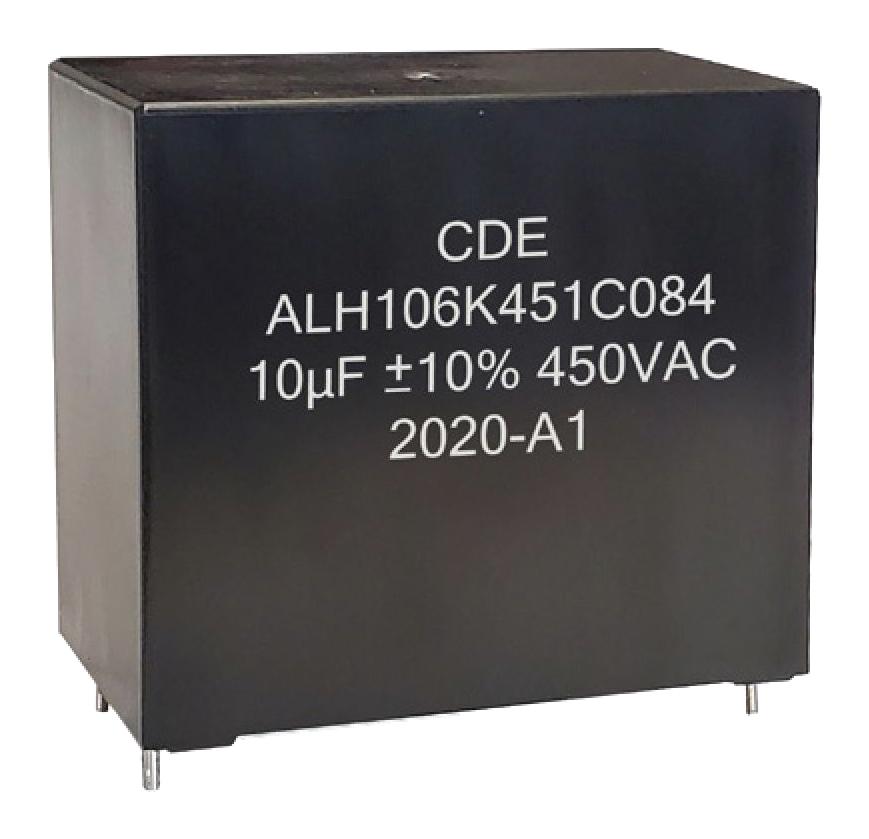

CORNELL DUBILIER ALH106K451C084 AC Filter Capacitor
The ALH series AC filter capacitors are designed for harsh environments, offering reliable performance with a life expectancy of 100,000 hours at 70°C hot spot. Constructed with UL94V-0 case material and dry resin, these capacitors are suitable for high-frequency applications and electrical filtering in demanding conditions. They feature high insulation resistance, self-healing properties, low loss, and meet AEC-Q200 standards, making them ideal for automotive and industrial environments. Rated for several voltage options, they provide stable operation across a wide temperature range from -40°C to +105°C, with options for different capacitance values and leads configurations.
CORNELL DUBILIER ALH106K451C084 AC Filter Capacitor Specifications:
- Capacitance Range: 0.22 to 50 uF
- Capacitance Tolerance: +10% standard, 5% optional
- Rated Voltage: 160 to 450 Vac
- Operating Temperature Range: -40°C to 105°C (derate voltage 1.35% per °C above 85°C)
- Test Voltage between Terminals @ 25°C: 150% of DC voltage (1.414 x Vac) for 10s
- Test Voltage between Terminals and Case @ 25°C: 3 kVac @ 50/60 Hz for 10s
- Insulation Resistance: 230,000 MΩ·pF @ 100 Vdc, 25°C after 1 minute
- Life Expectancy: 100,000 hours at 70°C hot spot, rated voltage
- Construction: UL94V-0 plastic case, dry resin, tin-plated copper terminals
- Standards: IEC 61071, AEC-Q200 qualified, RoHS compliant
- Dimensions: Varies with model, typical length approx. 32-45 mm, diameter approx. 20-37 mm
- Maximum rms Current: as per data tables
- Certifications: UL Recognized, cUL US construction only, unprotected
Buy the CDE Series AC Filter Capacitors: ALH 450 Vac
Purchase the CDE Series ALH AC filter capacitors online today for dependable performance in industrial and automotive applications. These high-quality, AEC-Q200 qualified capacitors are engineered to withstand harsh conditions, including high temperature and humidity, ensuring long lifespan and stable operation. With a broad voltage range up to 450 Vac and various capacitance options, they are perfect for high-frequency filtering, electrical noise suppression, and power quality improvement. Buy now and enhance your project's reliability with proven components designed for demanding environments.
Order your CDE Series ALH 450 Vac AC filter capacitor today and ensure your electronic systems perform reliably in the harshest environments with long-lasting quality.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER ALH106K451C084?
You can click on the BUY or RFQ button to purchase ALH106K451C084 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part ALH106K451C084?
You can download the ALH106K451C084 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of ALH106K451C084?
CORNELL DUBILIER
