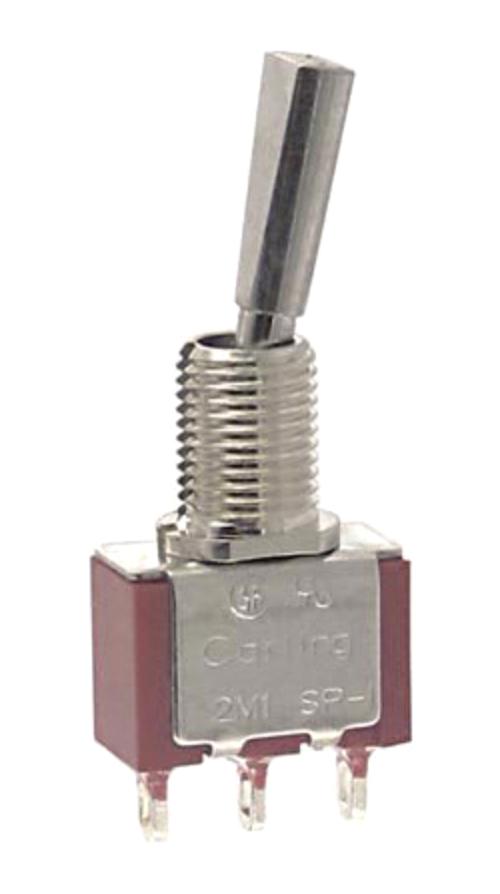

Carling Technologies 2M1SP1T6B1M1QE Miniature Toggle Switch
The 2M-Series miniature toggle switches are highly versatile with IP67 sealing, available in various circuits, pole configurations, and actuator styles. They feature a sleek black finish, multiple terminal options including solder lug, PCB, wire wrap, and quick connect, and are UL approved for safety. Suitable for telecommunications, instrumentation, networking, medical equipment, and military applications, these switches offer long-lasting operation with 50,000 cycles, and operate within -30°C to +85°C, ensuring dependable performance in harsh environments. Optional accessories include toggle caps, rubber seals, dress nuts, and locking levers for customized deployment in industrial projects.
Carling Technologies 2M1SP1T6B1M1QE Miniature Toggle Switch Specifications:
- Sealing: IP67 for protection against dust and water ingress
- Electrical Life: 50,000 make & break cycles at full load
- Contact Resistance: 10 mΩ max. initial at 2-4 VDC, 100mA
- Operating Temperature: -30°C to +85°C (UL 94V-0)
- Material: Brass contact with gold, silver, or tin plating; stainless steel support
- Electrical Ratings: 5A 125VAC, 28VDC; 2A 250VAC
- Insulation Resistance: 1000 MΩ min.
- Dielectric Strength: 1500 Volts RMS @ sea level
- Physical Dimensions: Bushing options vary, typical actuator length 0.496 inches (12.60 mm), mounting hole diameters from 0.315 to 0.464 inches
- Mounting: PC Mounting, snap-in, threaded, or unthreaded bushings
- Durability: UL approved, flame-retardant plastic and heat-stabilized components
Buy the Carling 2M1P3T6B1 – Reliable Toggle Switch for Industrial Applications
Discover the high-quality miniature toggle switch from Carling with IP67 sealing, multiple circuit and pole configurations, and various actuator styles. Designed for durability and reliable operation, these switches suit telecommunications, instrumentation, networking, medical, and military applications. UL approved, with long cycle life and operating temperature range of -30°C to +85°C, they feature multiple terminal options including solder lug, PCB, wire wrap, and quick connect. Enhance your projects by ordering online today for fast delivery and trusted performance.
Order your Carling Series 2M1 toggle switch today and ensure dependable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Carling Technologies 2M1SP1T6B1M1QE?
You can click on the BUY or RFQ button to purchase 2M1SP1T6B1M1QE from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part 2M1SP1T6B1M1QE?
You can download the 2M1SP1T6B1M1QE datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of 2M1SP1T6B1M1QE?
Carling Technologies
