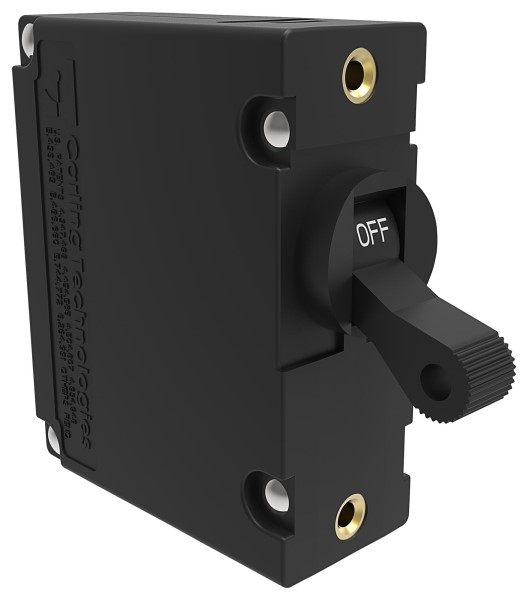

Carling Technologies AA1B9202101D1C Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers are designed for precise operation in a compact form factor. These breakers are ideal for a wide range of applications, including marine, telecom, renewable energy, and industrial automation. They offer versatility with configurations from one to six poles, rated up to 50 amps, 277VAC/80VDC, and a maximum interrupting capacity of 7,500 amps. The A-Series features Visi Rocker® and recessed paddle actuators for clean front panel designs, while the metal toggle configuration is suitable for harsh environments. Trip-free operation ensures safety, and auxiliary switches are available for enhanced functionality.
Carling Technologies AA1B9202101D1C Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Maximum Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Number of Poles: 1 - 6
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
Buy the AA1-B9-20-210-1D1-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES AA1-B9-20-210-1D1-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies AA1B9202101D1C?
You can click on the BUY or RFQ button to purchase AA1B9202101D1C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AA1B9202101D1C?
You can download the AA1B9202101D1C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AA1B9202101D1C?
Carling Technologies
