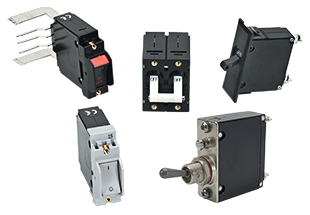

Carling Technologies AC1X0058205F1C Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers are designed for precise operation in a compact form factor, suitable for both general-purpose and full-load applications. Featuring Visi Rocker® and recessed paddle actuators for clean front panel designs, or a metal toggle configuration for harsh environments, these breakers offer versatility and reliability. They are available in configurations from one to six poles, rated up to 50 amps and 277VAC/80VDC, with a maximum short-circuit current rating of 7,500 amps. Applications include marine, telecom, renewable energy, generators, welders, military, industrial automation, and commercial food equipment.
Carling Technologies AC1X0058205F1C Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Max Voltage: 277VAC, 80VDC
- Max IC: 7,500 amps
- Number of Poles: 1 - 6
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute between all electrically isolated terminals
Buy the AC1-X0-05-820-5F1-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES AC1-X0-05-820-5F1-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies AC1X0058205F1C?
You can click on the BUY or RFQ button to purchase AC1X0058205F1C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AC1X0058205F1C?
You can download the AC1X0058205F1C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AC1X0058205F1C?
Carling Technologies
