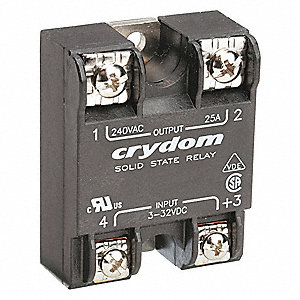

Crydom D2425S10 Solid State Relay
The Crydom D2425S-10 is a robust panel mount solid state relay engineered for demanding industrial applications. It provides a switching solution for loads ranging from 10A to 125A at voltages between 24 and 280 VAC. Key features include SCR output for heavy loads, zero voltage or instantaneous turn-on options, and enhanced mechanical design with anti-rotation barriers. The relay is UL/CSA/VDE approved and CE compliant, ensuring reliable performance and safety. Its direct bond copper substrate and epoxy-free design contribute to improved thermal performance and EMC compliance. Suitable for AC or DC control, this relay is a versatile choice for various industrial automation and power control systems.
Crydom D2425S10 Solid State Relay Specifications:
- Ratings: 10A to 125A @ 24-280 VAC
- Output: SCR output for heavy industrial loads
- Turn-on: Zero voltage or instantaneous turn-on outputs
- Approvals: UL/CSA/VDE Approved, CE Compliant to EN60950-1
- Control: AC or DC control
- Substrate: Direct bond copper substrate
- EMC: EMC compliant to Level 3
- Design: Epoxy free design
- Control Voltage: 3-32 VDC, 90-280 VAC, 18-36 VAC
- Operating Voltage: 24-280 Vrms
- Transient Overvoltage: 600 Vpk
- Leakage Current: 1 mArms
- dv/dt: 500 V/µsec
- Load Current: 10-125 Arms
- Minimum Load Current: 150-250 mArms
- Surge Current: 115/120 Apk to 1670/1750 Apk
- Voltage Drop: 1.15 Vrms
- Thermal Resistance: 0.22 to 1.03 °C/W
- I²t: 66/60 A²sec to 13950/12709 A²sec
- Power Factor: 0.5
- Input Control Voltage Range: 3-32 VDC
- Maximum Reverse Voltage: -32 VDC
- Minimum Turn-On Voltage: 3.0 VDC
- Maximum Turn-Off Voltage: 1.0 VDC
- Input Current Range: 7-20 mA
- Turn-On Time: 1/2 Cycle or 20 msec
- Turn-Off Time: 1/2 Cycle or 30 msec
- Dielectric Strength: 4000 Vrms
- Insulation Resistance: 109 Ohm
- Capacitance: 8 pF
- Operating Temperature: -40 to 80°C
- Storage Temperature: -40 to 125°C
- Weight: 2.6 oz (74.9g)
- Housing Material: 94 V-0
- Baseplate Material: Aluminum
- Input Terminal Torque: 13-15 in-lb / 1.5-1.7 Nm
- Load Terminal Torque: 18-20 in-lb / 2.0-2.2 Nm
- Mounting Screw Torque: 18-20 in-lb / 2.0-2.2 Nm
- Input/Load Terminal Torque (with K option): 8-10 in-lb / 0.9-1.13 Nm
- Terminal Thread Size: #6-32 UNC / #8-32 UNC
Buy the D2425S-10 Crydom Solid State Relay | myMectronic
Purchase the Crydom D2425S-10 Solid State Relay securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Crydom D2425S10?
You can click on the BUY or RFQ button to purchase D2425S10 from an authorized Crydom distributor.
How do I troubleshoot issues or seek technical support for part D2425S10?
You can download the D2425S10 datasheet or visit the Crydom website for support.
Who is the manufacturer of D2425S10?
Crydom
