DIALIGHT 5563706304F LED Panel Indicator

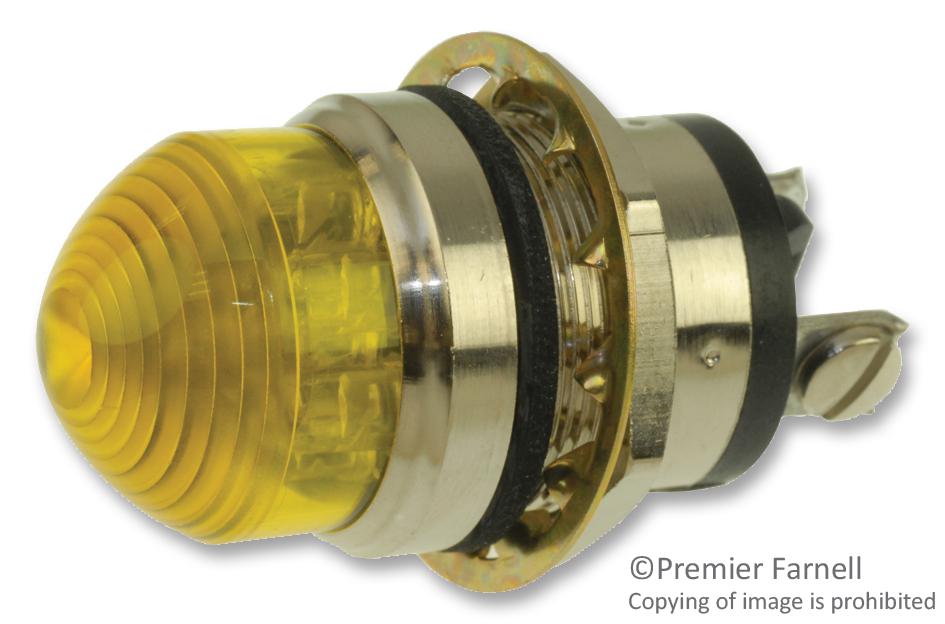

The 556-3706-304F is a yellow LED panel indicator with a durable nickel-plated brass housing and a dome-shaped polycarbonate lens, designed for 1-inch mounting holes. It offers high-intensity illumination using InGaN and AlInGaP technologies, suitable for outdoor and industrial applications exposed to rain, dust, and sunlight. The indicator is water-tight, meeting NEMA 4X and IP66 standards, with a maximum mounting torque of 40 in-lb. It operates from -30°C to 85°C, ideal for safety, signaling, and display purposes in demanding environments.
DIALIGHT 5563706304F LED Panel Indicator Specifications:
- Housing Material: Nickel plated brass
- Lens Material: Polycarbonate 94-VO
- Lens Shape: Dome
- Lens Diameter: 0.187"
- Maximum Panel Thickness: 0.4"
- Mounting Hole Diameter: 1"
- Voltage Range: 37.5, 72, 125 VDC
- Current: 16-20 mA
- Luminance: 1800-4000 mcd
- Waterproof Standard: NEMA 4X, IP66
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +100°C
- Housing: Nickel-plated brass
- Certifications: UL Recognized File #E156890
Buy the Dialight Series 556 LED Indicator: 5563706304F
Enhance your industrial or safety signage with the high-quality, waterproof Dialight Series 556 yellow LED indicator. Featuring a durable nickel-brass housing and a dome-shaped polycarbonate lens, this indicator provides superior brightness and long life. Suitable for outdoor applications like transportation, safety, and control panels, it meets NEMA 4X and IP66 standards for water and dust resistance. Easy to install with a 1-inch mounting hole, it operates across a wide temperature range, ensuring reliable performance in demanding conditions. Purchase online today for dependable visibility and safety.
Order your Dialight Series 556 yellow LED indicator today and ensure reliable, high-visibility signaling in harsh outdoor environments.
Frequently Asked Questions
Where can I buy DIALIGHT 5563706304F?
You can click on the BUY or RFQ button to purchase 5563706304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5563706304F?
You can download the 5563706304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5563706304F?
DIALIGHT
