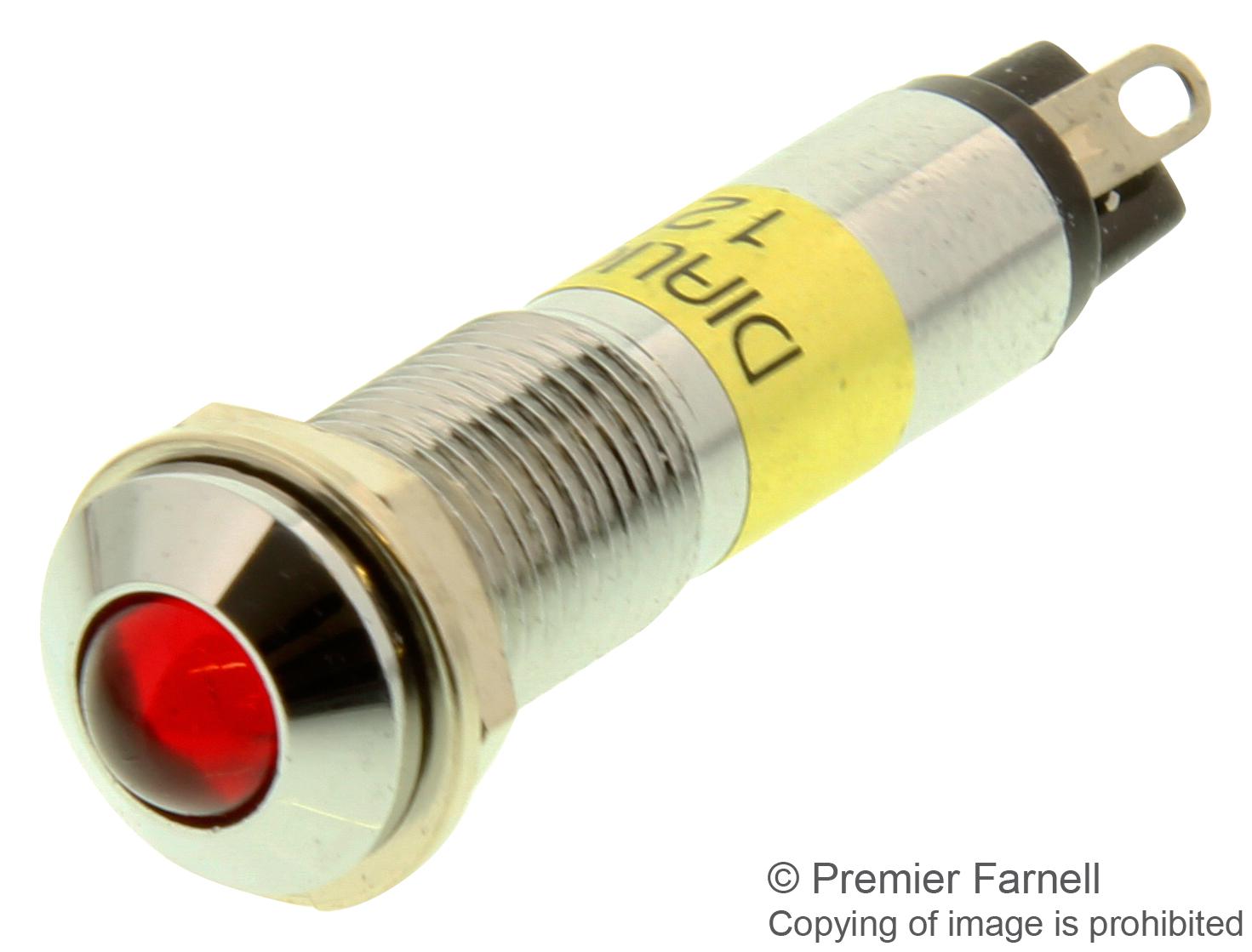

DIALIGHT 6091112130F LED Panel Indicator
The 609 Series LED Panel Mount Indicators are designed for easy installation through a 9.35mm mounting hole, offering options for watertight sealing with NEMA 4X/IP66 compliance. These indicators operate at 6, 12, and 24 VDC, with solder terminal connections, and feature chrome-plated brass or painted brass housings. Suitable for various industrial applications such as power and status indication, they are robust, weather-resistant, and ideal for panel applications requiring reliable visual signals under harsh conditions. They are available with different LED colors and mounting options to fit diverse requirements.
DIALIGHT 6091112130F LED Panel Indicator Specifications:
- Voltage requirements: 6, 12 and 24 VDC (no resistor required)
- Mounting hole size: 0.368 inches [9.35 mm]
- Maximum panel thickness: 0.376 inches [9.50 mm]
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Housing Material: Chrome plated brass or painted brass
- Watertight Seal: Meets NEMA 4X/IP66
- Electrical connection: Solder terminals
- Color Options: Green, Yellow, Red LED
- Intensity: 15 mA current, typical brightness varies with color
- Mounting: With lock washer and nut (recommended torque 5 Kg/cm)
Buy the Dialight Series 609 LED Panel Mount Indicators: 609-XXXX-XXXF
Enhance your control panels with the Dialight Series 609 LED Indicator, offering waterproof design, multiple color options, and compact mounting. Easy to install with solder terminals, these indicators are ideal for power, status, and warning signals in rugged industrial settings. Operating at 6, 12, or 24 VDC, they deliver reliable performance with NEMA 4X/IP66 protection, ensuring durability and safety. Suitable for diverse applications, these indicators improve visibility and operational efficiency for your automation and control projects.
Order your Dialight Series 609 LED Panel Mount Indicator today and ensure reliable visual signaling in harsh industrial environments with waterproof performance.
Frequently Asked Questions
Where can I buy DIALIGHT 6091112130F?
You can click on the BUY or RFQ button to purchase 6091112130F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6091112130F?
You can download the 6091112130F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6091112130F?
DIALIGHT
