DIODES INC. 74AHC1G07QSE7 Single Buffer Gate
The 74AHC1G07Q is an automotive-grade, lead-free single buffer with open drain output, suitable for automotive and industrial applications. It operates from 2.0V to 5.5V, features Schmitt Trigger inputs for Tolerant signal processing, and offers high reliability with ESD protection exceeding 2000V human body model. Its open-drain output allows wired-OR and wired-AND configurations, making it ideal for automotive controls, networking, and automation systems requiring high-temperature endurance from -40°C to +125°C. Fully compliant with RoHS and green manufacturing standards, it ensures safe, eco-friendly operation.
DIODES INC. 74AHC1G07QSE7 Single Buffer Gate Specifications:
- Supply Voltage Range: 2.0V to 5.5V
- Operating Temperature: -40°C to +125°C
- ESD Protection: >2000V Human Body Model
- Output Sink Current: 8mA at 4.5V
- Input Voltage Range: 0V to Vcc
- Output Voltage: 0V to Vcc
- Low Power CMOS Technology
- Schmitt Trigger Inputs for Tolerance
- Lead-Free, RoHS and WEEE Compliant
- Package Options: SOT25, SOT353
- Thermal Resistance (Junction to Ambient): 385 K/W for SOT353, 62.5 K/W for SOT25
- Package Size: SOT353 (1.9mm x 2.2mm), SOT25 (2.15mm x 2.1mm)

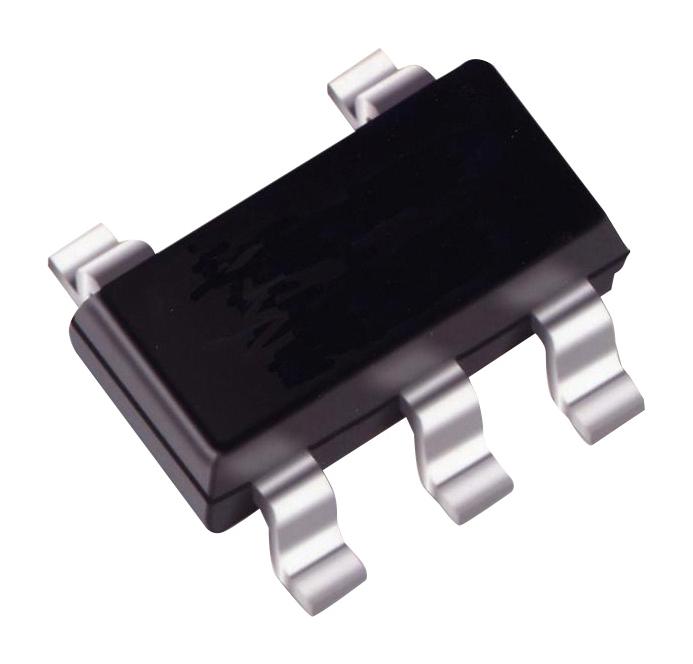

Buy the Buy Diodes 74AHC1G07Q Part Number 74AHC1G07QSE7 Online
Purchase the Diodes 74AHC1G07Q single buffer gate online today. This automotive-grade, lead-free device operates from 2.0V to 5.5V, with a wide temperature range of -40°C to +125°C. Its open drain output supports wired-OR and wired-AND functions, suitable for automotive and industrial controls, networking, or automation systems. Featuring robust ESD protection exceeding 2000V, low power CMOS technology, and RoHS compliance, it ensures durable and eco-friendly operation in demanding environments.
Get Diodes 74AHC1G07Q today—designed for automotive and industrial automation, with high reliability, open drain output, and wide temperature range.
