DIODES INC. DMTH10H009LPSQ13 High Voltage MOSFET
The DMTH10H009LPSQ is a high-performance N-channel enhancement mode MOSFET designed for automotive, motor control, DC-DC converters, and power management applications. It features a voltage rating of 100V, a maximum operating temperature of +175°C, low on-resistance (8 mΩ at Vgs=10V), and fast switching capabilities. With a compact PowerDI5060-8 package, lead-free, RoHS compliant, and AEC-Q101 qualified, it ensures reliable operation in high ambient temperatures with minimal losses and high efficiency. Suitable for demanding automotive and industrial environments, it offers thermal robustness and environmentally friendly construction.
DIODES INC. DMTH10H009LPSQ13 High Voltage MOSFET Specifications:
- Drain-Source Voltage Voss: 100 V
- Gate-Source Voltage Vgs: ±20 V
- Continuous Drain Current at 25°C: 91 A
- Continuous Drain Current at 100°C: 64 A
- Pulsed Drain Current: 360 A
- Maximum Body Diode Forward Current: 85 A
- Avalanche Current: 21 A
- Avalanche Energy: 66 mJ
- On-Resistance Rds(on): 8 mΩ at Vgs=10V
- Thermal Resistance Junction to Ambient: 49°C/W
- Total Power Dissipation: 34 W
- Operating Temperature Range: -55°C to +175°C
- Package: PowerDI5060-8, Molded Plastic, RoHS and Halogen/Antimony Free
- Case Material: Molded Plastic with green molding compound
- Flammability: UL 94V-0
- Terminal Finish: Matte Tin over Copper Leadframe

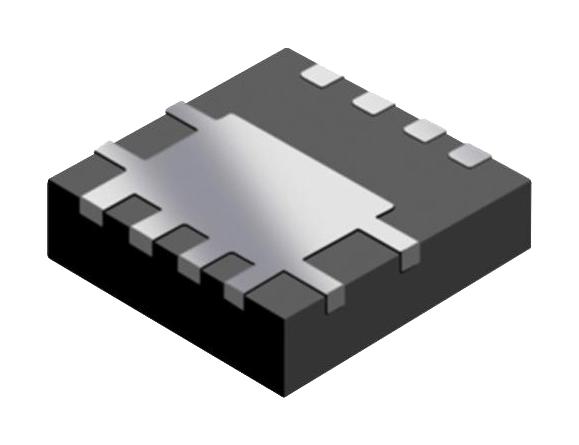

Buy the Buy Diodes High Voltage MOSFET Part Number DMTH10H009LPSQ11 Online
Order the Diodes DMTH10H009LPSQ online today and ensure your power management or automotive project benefits from superior efficiency, robust thermal performance, and environmentally friendly construction. This high-performance N-channel MOSFET provides low on-resistance, fast switching, and high reliability in demanding environments. Its RoHS compliance and AEC-Q101 qualification make it suitable for automotive, motor control, DC-DC converter, and industrial applications. Enjoy fast delivery and comprehensive support for your high-power needs with this environmentally friendly, compact, and proven device.
Buy Diodes DMTH10H009LPSQ high-voltage MOSFET now and enjoy reliable high-temperature operation with low Rds(on) for power management and automotive applications.
Frequently Asked Questions
Where can I buy DIODES INC. DMTH10H009LPSQ13?
You can click on the BUY or RFQ button to purchase DMTH10H009LPSQ13 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part DMTH10H009LPSQ13?
You can download the DMTH10H009LPSQ13 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of DMTH10H009LPSQ13?
DIODES INC.
