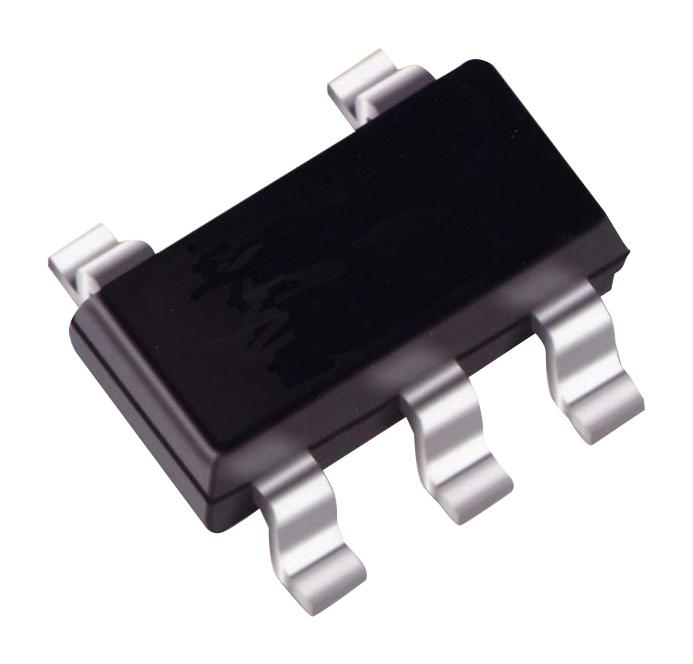

DIODES INC. 74AHC1G125QW57 Single Buffer
The 74AHC1G125Q is an automotive-grade, lead-free single non-inverting buffer with a 3-state output designed for high-reliability applications. Capable of operating within a wide voltage range of 2.0V to 5.5V and temperature range from -40°C to +125°C, it features low power CMOS technology, high output drive of 48mA at 4.5V, and robust ESD protection exceeding 2000V. Suitable for automotive, industrial controls, communication networks, and automation, this device ensures reliable signal buffering with Schmitt Trigger inputs for slower signals and balanced propagation delays for optimal performance in demanding environments.
DIODES INC. 74AHC1G125QW57 Single Buffer Specifications:
- Supply Voltage Range: 2.0V to 5.5V
- Operating Temperature: -40°C to +125°C
- High Output Drive: 48mA at 4.5V
- Low Power CMOS Technology
- 3-State Output with High Impedance Mode
- ESD Protection: >2000V Human Body Model
- Package Types: SOT25 and SOT353
- Package Size: 2.15mm x 2.1mm x 1.1mm (SOT353)
- Pin Count: 5
- Input Voltage Range: 0V to Vcc
- Propagation Delay: Typical 60-115 ns depending on load and temperature
- Compatible with automotive and industrial standards, AEC-Q100 qualified
- RoHS, Halogen, and Antimony free, Green compliant
Buy the Diodes Series 74AHC1G125Q Buffer: 74AHC1G125Q
Purchase the Diodes Series 74AHC1G125Q online today and benefit from a robust, automotive-grade buffer with a wide voltage range, high drive strength, and low power consumption. Designed for demanding environments like automotive control units, industrial automation, and networking systems, this device ensures signal integrity with excellent ESD protection exceeding 2000V. Its compact SOT25 and SOT353 packages make integration straightforward. Secure your supply of this reliable, lead-free buffer for high-performance electronic designs and automotive applications today to ensure top-tier system reliability.
Get Diodes Series 74AHC1G125Q today—built for precision and long-lasting durability in automotive and industrial applications.
Frequently Asked Questions
Where can I buy DIODES INC. 74AHC1G125QW57?
You can click on the BUY or RFQ button to purchase 74AHC1G125QW57 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part 74AHC1G125QW57?
You can download the 74AHC1G125QW57 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of 74AHC1G125QW57?
DIODES INC.
