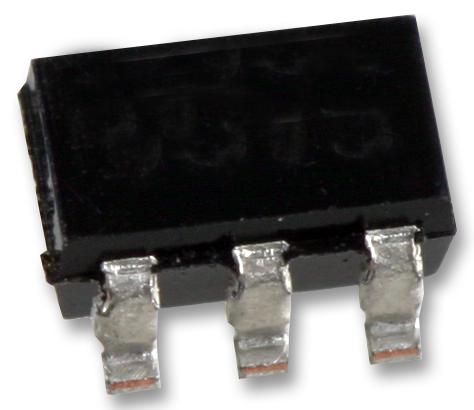

DIODES INC. ZVP4525E6TA High-Voltage Power MOSFET
The ZVP4525E6 is a high-voltage P-channel enhancement mode MOSFET designed for efficient power management and switching in high voltage circuits. Its features include low on-resistance, fast switching speeds, and a low gate drive requirement, making it suitable for telecom, solid-state relays, and high voltage power drivers. Fully RoHS compliant, lead-free, and halogen-free, it offers reliable operation with a maximum drain-source voltage of -250V and a continuous drain current of 7157mA. The device is housed in a compact SOT26 package with lead finish of matte tin over copper leadframe.
DIODES INC. ZVP4525E6TA High-Voltage Power MOSFET Specifications:
- Maximum Drain-Source Voltage: -250 V
- Maximum Gate-Source Voltage: +40 V
- Continuous Drain Current: 7157 mA
- Power Dissipation: 1 W
- Thermal Resistance, Junction to Ambient: 68°C/W
- Operating Temperature Range: -55°C to +150°C
- Case: SOT26, Molded Plastic, UL94V-0 Flammability Rating
- Terminals: Matte Tin over Copper Leadframe, Solderable per MIL-STD-202, Method 208
- Device Weight: 0.018 grams
- Markings: P52 Y for date code
- Leakage Current at 100V: 500 nA
- On-Resistance (Rds(on)): 13-18 mΩ at Ves = -10V, Ip = -200mA
- Gate Threshold Voltage: -0.8 to -2.0 V
- Input Capacitance: 73 pF, Output Capacitance: 12.8 pF
- Reverse Recovery Time: 290 ns
- Repetitive Pulsed Drain Current: 10A
Buy the Diodes Series ZVP P-Channel Enhancement MOSFET: ZVP4525E6
Purchase the Diodes ZVP4525E6 high-voltage power MOSFET online today and ensure your circuits benefit from low Rds(on), fast switching speeds, and robust high-voltage handling. This lead-free, RoHS-compliant device is perfect for telecom, high voltage drivers, and solid-state relays, offering dependable performance and compact SOT26 packaging. Enjoy seamless integration into your high-power applications with guaranteed quality, easy soldering, and superior thermal management. Order now to boost your circuit’s efficiency and reliability with this top-tier enhancement mode MOSFET.
Buy Diodes ZVP4525E6 now and experience unmatched reliability and high-voltage switching performance in your electronic applications.
Frequently Asked Questions
Where can I buy DIODES INC. ZVP4525E6TA?
You can click on the BUY or RFQ button to purchase ZVP4525E6TA from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part ZVP4525E6TA?
You can download the ZVP4525E6TA datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of ZVP4525E6TA?
DIODES INC.
