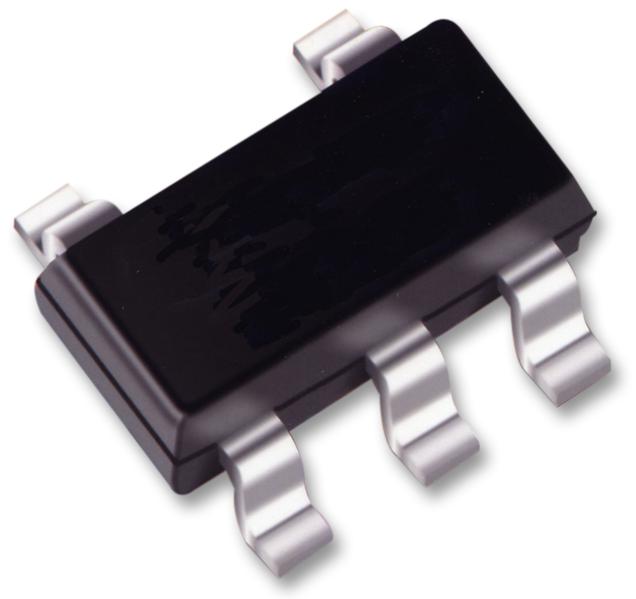

DIODES INC. 74AHCT1G00SE7 Digital Logic NAND Gate
The 74AHCT1G00 is a compact single 2-input positive NAND gate designed for high-speed digital logic applications. Operating between 4.5V to 5.5V, it features a standard totem pole output, low power consumption, and Schmitt Trigger action at all inputs for slower input signal rise and fall times. Its ESD protection exceeds 2000V human body model, making it suitable for various electronic systems such as computers, networking, consumer electronics, and communication devices. The device ensures reliable operation with a low output drive of 8mA at 5V, robust input/output voltage ranges, and is compatible with RoHS standards.
DIODES INC. 74AHCT1G00SE7 Digital Logic NAND Gate Specifications:
- Supply Voltage Range: 4.5V to 5.5V
- Output Drive: 8mA at 5V
- ESD Protection: >2000V Human Body Model
- Input Voltage Range: 0 to 5.5V
- Output Voltage: 0 to Vcc
- Low Power Consumption CMOS Logic
- Schmitt Trigger Inputs for slower rise/fall times
- Operating Temperature: -40°C to 125°C
- Storage Temperature: -65°C to 150°C
- Package Types: SOT25 and SOT353
- Package Dimensions: SOT25 - 3.00 mm x 2.80 mm, SOT353 - 1.35 mm x 1.10 mm
- Maximum Power Dissipation: 40 pF capacitance, 1.35 mA current at 5.5V
- TTL compatible input levels with high and low thresholds
- Pin Assignments: A and B inputs, GND, Y output, Vcc
