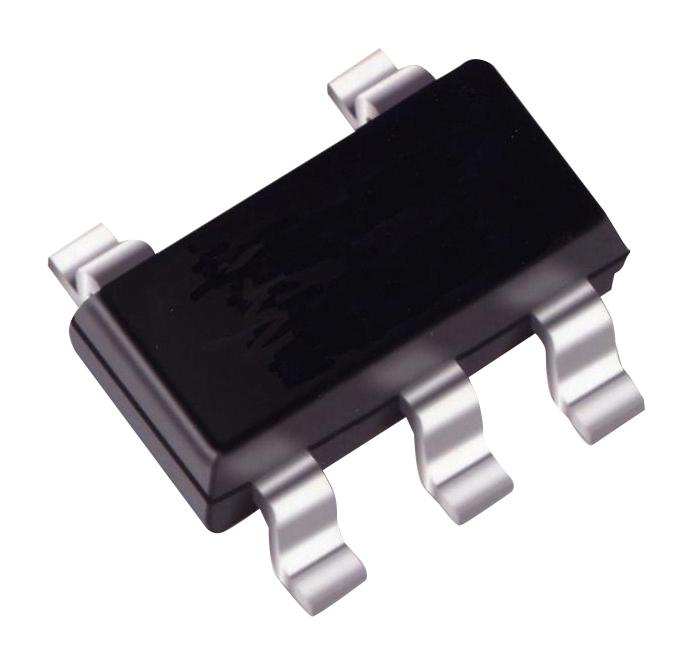

DIODES INC. 74LVC1G06QW57 Single Inverter
The 74LVC1G06Q is an automotive-grade, single inverter with open-drain output, designed for operation from 1.65V to 5.5V. It features open-drain outputs suitable for wired-OR configurations and can handle up to 24mA sink current at 3.3V. Fully compliant with RoHS and AEC-Q100, this device supports partial power-down modes, offers high ESD protection over 2000V, and is ideal for automotive, industrial automation, communication, and high-reliability networking applications. Its low power CMOS technology ensures energy-efficient performance in demanding environments.
DIODES INC. 74LVC1G06QW57 Single Inverter Specifications:
- Supply Voltage Range: 1.65V to 5.5V
- Maximum Sink Current: 24mA at 3.3V
- Open-Drain Output: Yes, connectable for wired-OR functions
- ESD Protection: >2000V Human Body Model, >1000V Charged Device Model
- Operating Temperature: -40°C to +125°C
- Power Consumption: CMOS low power technology
- Input Voltage Tolerance: Up to 5.5V regardless of Vcc
- Package Types: SOT25 and SOT353
- Package Dimensions (approximate): 2.15mm x 2.1mm x 11mm (SOT353), 3.0mm x 2.8mm x 1.2mm (SOT25)
- Thermal Resistance: SOT25 - 184°C/W, SOT353 - 385°C/W
- Humidity Sensitivity: Level 1 per J-STD-020
- Lead Finish: Matte Tin Plated Leads
- Compliance: RoHS, fully lead-free, halogen free
- AEC-Q100 Qualified, suitable for automotive applications
- Supported for partial power-down operation via Low-Ohm-Resistor circuitry
Buy the Diodes 74LVC1G06Q – Reliable Automotive Open-Drain Inverter for Industrial Applications
Discover the high-reliability automotive-rated open-drain inverter designed for industrial and automotive electronics. Operates from 1.65V to 5.5V with partial power-down support and high ESD protection. Fully RoHS compliant and AEC-Q100 qualified, it ensures optimal performance in harsh environments. Its compact package options, low power CMOS technology, and robust construction make it an ideal choice for industrial automation, high-reliability networking, and automotive control systems. Buy online now to secure this versatile, energy-efficient logic device for your demanding applications.
Order your Diodes 74LVC1G06Q automotive inverter today and enhance your industrial automation projects with dependable, high-performance open-drain logic.
Frequently Asked Questions
Where can I buy DIODES INC. 74LVC1G06QW57?
You can click on the BUY or RFQ button to purchase 74LVC1G06QW57 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part 74LVC1G06QW57?
You can download the 74LVC1G06QW57 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of 74LVC1G06QW57?
DIODES INC.
