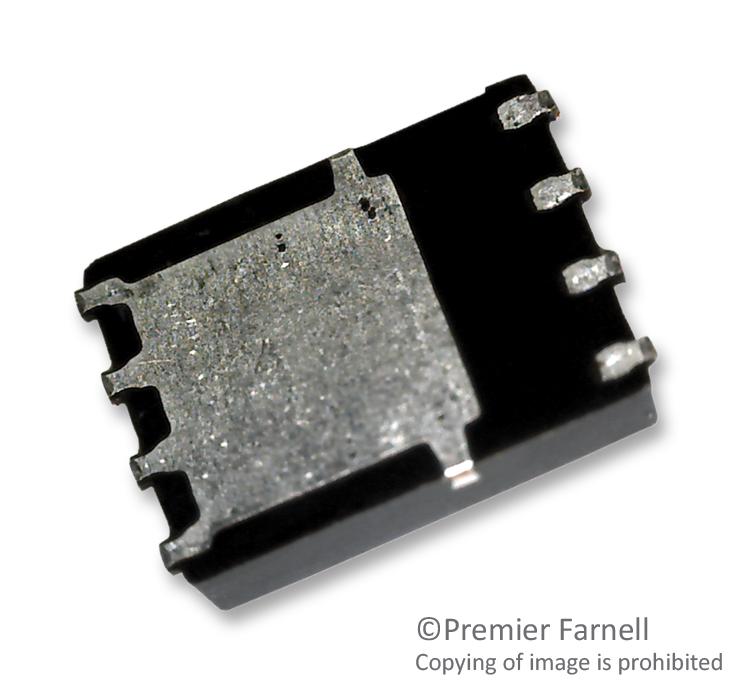

DIODES INC. DMT10H032LFVW7 High-Efficiency Power MOSFET
The PowerMOSFET is designed for high-efficiency power management, featuring low on-state resistance and superior switching performance. Suitable for applications like backlighting, power management functions, and DC-DC converters, it offers a 100V drain-source voltage, low Rds(on) values, and robust thermal and electrical characteristics. Its compact, thermally efficient, lead-free package ensures high-density end products with reliable performance across a range of operating temperatures from -55°C to +150°C, making it ideal for automotive, industrial, and electronic device applications.
DIODES INC. DMT10H032LFVW7 High-Efficiency Power MOSFET Specifications:
- Drain-Source Voltage: 100 V
- Gate-Source Voltage: ±20 V
- Continuous Drain Current: 13 A at 25°C, 17 A pulsed
- Maximum Continuous Body Diode Forward Current: 17 A
- Pulsed Drain Current: 68 A
- Thermal Resistance Junction to Ambient: 49°C/W
- Total Power Dissipation: 1.3 W
- Operating Temperature Range: -55°C to +150°C
- Package: PowerDI®3333-8, Molded plastic, RoHS compliant, UL rated V-0
- Gate Threshold Voltage: 1.3V to 2.0V
- On-Resistance: Typical 50 mΩ at 10V Gate
- Switching Characteristics: Rise Time 45ns, Fall Time 93ns
- Certifications: RoHS, Pb-Free, Halogen and Antimony Free
- Body Diode: Forward Voltage approx 0.8V at 6A
Buy the Diodes Series PowerDI3333-8 100V MOSFET: DMT10H032LFVW
Purchase the Diodes PowerDI3333-8 MOSFET online today for reliable, high-performance power management. Its low on-resistance and efficient thermal design ensure optimal operation in automotive, industrial, and electronic applications. This lead-free, RoHS compliant device offers robust electrical and thermal characteristics, including 100V drain-source voltage and high pulsed current capacity. Whether you're designing DC-DC converters or backlighting systems, order now to benefit from high density, compact form factor, and enhanced durability, ensuring your projects perform flawlessly with this advanced MOSFET.
Get Diodes PowerDI3333-8 MOSFET today—built for high efficiency, low resistance, and durable performance in power management applications.
