DIODES INC. S8KC13 High Surge Rectifier
The S8KC - S8MC is a high-performance 8.0A surface mount glass passivated rectifier designed for high surge capacity and low forward voltage drop. Crafted with glass passivation for durability, it features a molded plastic SMC case with UL 94V-0 flammability rating and lead-free tin-plated terminals. Its robust construction includes a guard ring for transient protection, making it ideal for automated assembly in power supply, rectification, and industrial applications. This “green” device is RoHS compliant, halogen-free, and suitable for resistive or inductive loads, with excellent reliability and high surge overload capabilities.
DIODES INC. S8KC13 High Surge Rectifier Specifications:
- Peak Repetitive Reverse Voltage: 800V (S8KC), 1000V (S8MC)
- DC Blocking Voltage: 560V (S8KC), 700V (S8MC)
- Maximum Forward Voltage: 0.985V at 8A
- Average Rectified Output Current: 8.0A at +75°C
- Surge Overload Rating: 200A peak
- Non-Repetitive Peak Surge Current: 450A for 1.0ms
- Junction to Terminal Thermal Resistance: 10°C/W
- Operating and Storage Temperature Range: -65°C to +150°C
- Case: SMC, Molded Plastic, UL 94V-0
- Terminals: Lead-free tin-plated, Solderable according to MIL-STD-202
- Polarity: Cathode band or notch, Moisture Sensitivity Level 1
- Dimensions (mm): A 5.59-6.22, B 6.60-7.11, Cc 2.75-3.18, D 0.15-0.31, E 7.75-8.13, G 0.10-0.20, H 0.76-1.52, J 2.00-2.50
- Marking: alXXXX, date code YWW
- Compliance: RoHS, halogen- and antimony-free, UL 94V-0 rated
- Application: Power rectification, industrial electronics, high surge applications, automated assembly

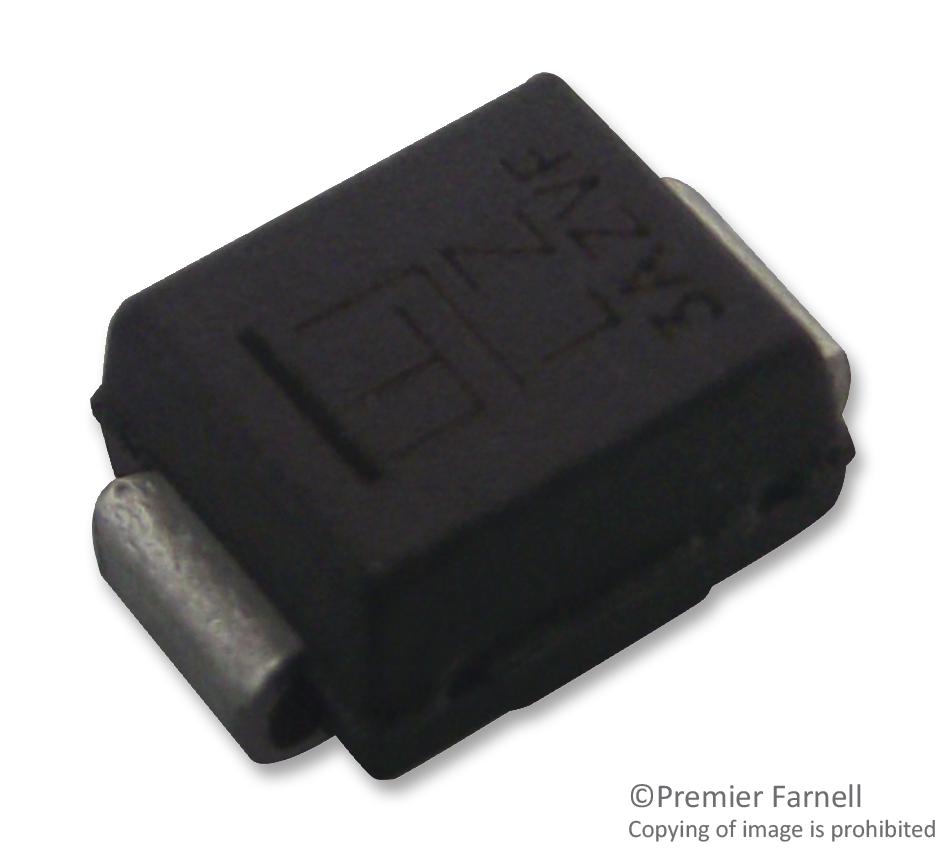

Buy the Buy Diodes High Surge Rectifier Part Number S8KC13 Online
Purchase the S8KC13 high surge rectifier online today and benefit from superior durability, low forward voltage, and high current capability. Ideal for industrial and power supply applications, this compact device offers excellent reliability, RoHS compliance, and high surge overload capacity, making it perfect for automated manufacturing and high-demand power rectification. Experience fast delivery and take advantage of our seamless online purchasing process to ensure your project stays on track with trusted, high-quality components.
Buy Diodes S8KC13 now and experience unmatched reliability and performance with high surge capacity and low forward voltage for industrial power supply solutions.
Frequently Asked Questions
Where can I buy DIODES INC. S8KC13?
You can click on the BUY or RFQ button to purchase S8KC13 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part S8KC13?
You can download the S8KC13 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of S8KC13?
DIODES INC.
