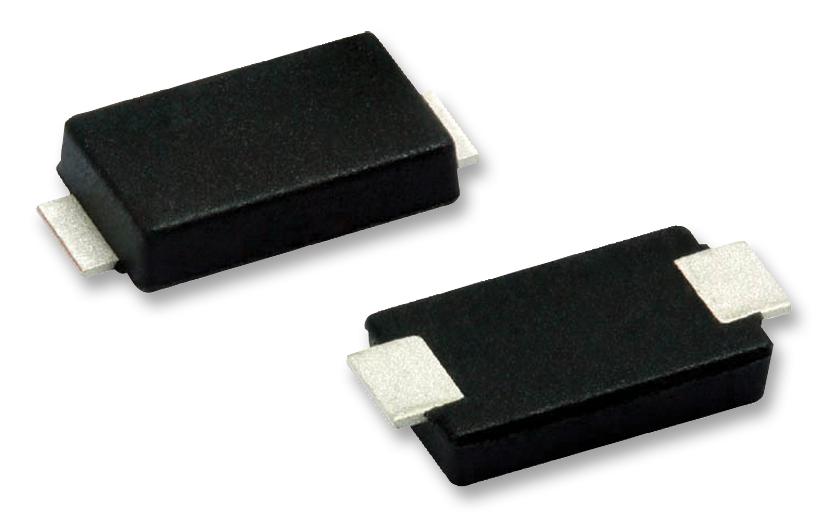

DIODES INC. SBRT5A50SAF13 Rectifier Diode
The SBRT5A50SAF is a 5A, 50V single rectifier diode housed in the low-profile SMAF package, offering low forward voltage drop and excellent high-temperature stability. It features a green, lead-free, RoHS-compliant, halogen-, and antimony-free construction, making it an eco-friendly choice for general rectification applications such as boost, blocking, and recirculating diodes. Designed for high reliability, it withstands peak repetitive reverse voltages of 50V, and has a maximum average rectified current of 5A, ensuring efficient performance in power management circuits and industrial automation systems.
DIODES INC. SBRT5A50SAF13 Rectifier Diode Specifications:
- Maximum Peak Repetitive Reverse Voltage: 50 V
- Maximum Working Peak Reverse Voltage: 50 V
- Maximum Average Rectified Output Current: 5 A
- Peak Forward Surge Current: 100 A
- Forward Voltage Drop: 0.39 V at 2.5 A, 0.53 V at 5 A
- Leakage Current: 30–150 μA at VR=50V, TA=25°C
- Thermal Resistance Junction to Ambient: 38°C/W
- Thermal Resistance Junction to Case: 28°C/W
- Operating & Storage Temperature Range: -55°C to +150°C
- Case Material: Molded Plastic, Green Molding Compound
- Finish: Matte Tin Annealed over Copper Leadframe
- Moisture Sensitivity Level: 1
- Package: SMAF, Dimensions in mm (A: 0.90–1.10, D: 2.25–2.95, E: 3.95–4.60)
- Polarity Marking: Cathode Band
- UL Flammability Rating: 94V-0
- RoHS and Halogen-Free
Buy the Buy Diodes Incorporated SBRT5A50SAF Part Number SBRT5A50SAF Online
Purchase the Diodes Incorporated SBRT5A50SAF rectifier diode online today. This 5A, 50V device in a compact SMAF package offers low forward voltage, excellent high-temperature stability, and is RoHS compliant. It is ideal for power supply rectification, industrial automation, and recirculating diode applications. With high peak surge current capacity and low leakage, this eco-friendly, halogen-free diode ensures reliable operation and compliance with environmental standards. Order now to improve your power circuitry efficiency with this high-quality component.
Buy Diodes Incorporated SBRT5A50SAF now and experience unmatched reliability and high-efficiency rectification performance in power management applications.
