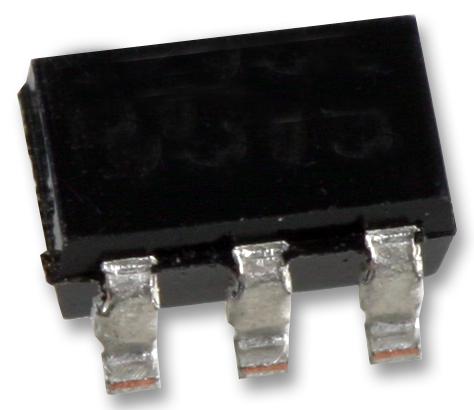

DIODES INC. ZXGD3006E6QTA Gate Driver
The ZXGD3006E6Q is a 40V gate driver designed for switching IGBTs and SiC MOSFETs, capable of delivering peak source/sink currents up to 10A for quick gate charge. It features a high-gain buffer with 4A output, optimized pin-out for simplified PCB design, near-zero quiescent current, and is fully lead-free, RoHS compliant, and qualified to automotive standards. Suitable for applications like DC-DC converters, solar inverters, power supplies, and automotive systems, it ensures reliable switching with minimal EMI and cross conduction reduction.
DIODES INC. ZXGD3006E6QTA Gate Driver Specifications:
- Supply Voltage, Voc: 40 V
- Input Voltage, Vin: 40 V
- Output Difference Voltage: 7 V
- Peak Pulsed Output Current: 10A
- Power Dissipation: data not specified (research externally for typical values)
- Thermal Resistance, Junction to Ambient: 113°C/W
- Operating and Storage Temperature Range: -55°C to +150°C
- Electrostatic Discharge (ESD) Ratings: Human Body Model 1500V, Charged Device Model 1000V
- Case: SOT26 plastic mold, lead finish: matte tin, UL 94V-0 flammability
- Size: approximately 2.7 x 1.5 mm, weight 0.018 grams
- Thermal Derating: 88 mW/°C
Buy the Diodes ZXGD3006E6Q – Reliable Gate Driver for Industrial Applications
Order the Diodes ZXGD3006E6Q online today and ensure your power electronics projects benefit from a high-performance, RoHS-compliant gate driver. Designed for switching IGBTs and SiC MOSFETs, it provides up to 10A peak current, ensuring fast and efficient gate charging. Its low quiescent current, optimized pinout, and wide temperature range make it ideal for demanding applications like DC-DC converters, solar inverters, and automotive power systems. Buy now for reliable operation and simplified PCB integration.
Buy Diodes ZXGD3006E6Q now and experience unmatched reliability and performance in high-current gate driving for industrial and automotive systems.
Frequently Asked Questions
Where can I buy DIODES INC. ZXGD3006E6QTA?
You can click on the BUY or RFQ button to purchase ZXGD3006E6QTA from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part ZXGD3006E6QTA?
You can download the ZXGD3006E6QTA datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of ZXGD3006E6QTA?
DIODES INC.
