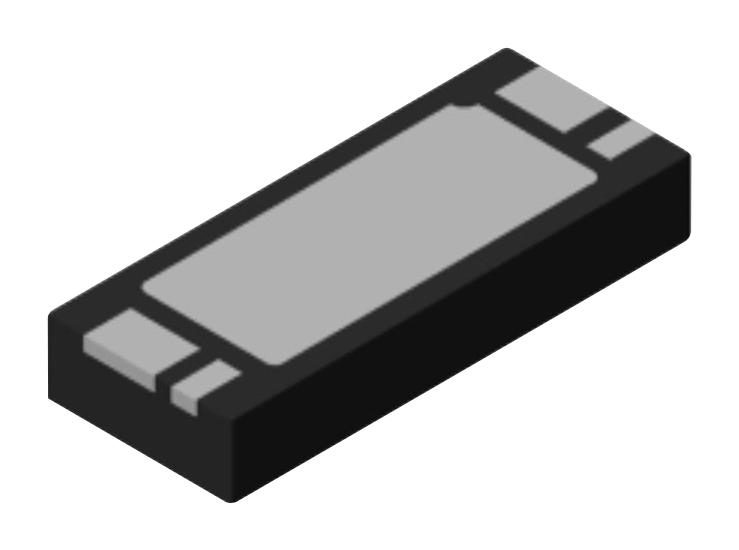

DIODES INC. DMN2024UFX7 Dual N-Channel MOSFET
This lead-free dual N-channel enhancement mode MOSFET is designed for high-efficiency power management with low on-resistance and fast switching capabilities. It features a BVpss Drain-Source Voltage of 20V, an Rds(on) max of 22mΩ at Ves = 4.5V, and a total power dissipation of 0.92W. Its molded plastic case (V-DFN2050-4) is RoHS compliant, halogen and antimony free, suitable for automotive, industrial, and consumer electronics applications, offering reliable performance with ESD protection and low input/output leakage.
DIODES INC. DMN2024UFX7 Dual N-Channel MOSFET Specifications:
- Drain-Source Voltage: 20 V
- Gate-Source Voltage: +10 V
- Continuous Drain Current: 6 A at Ves = 4.5V
- Maximum Continuous Body Diode Forward Current: 14 A
- Pulsed Drain Current: 40 A (10s pulse, 1% duty cycle)
- Avalanche Current: 12 A
- Total Power Dissipation: 0.92 W
- Thermal Resistance, Junction to Ambient: 136 °C/W
- Operating Temperature Range: -55°C to +150°C
- Package: Molded Plastic V-DFN2050-4
- RoHS compliant, halogen and antimony free, UL Flammability Rating: 94V-0
- Moisture Sensitivity Level: 1
- Solderable terminals with NiPdAu over Copper Leadframe
- Body Diode Forward Voltage: 1.0 V at 5A
- Gate charge Qg: 65 nC
- Gate resistance: 400 Ω
- Thermal resistance junction to case: 74 °C/W
Buy the Diodes Series DMN2024UFX: Dual N-Channel Enhancement Mode MOSFET
Order the Diodes DMN2024UFX online today to secure a high-performance, lead-free dual N-channel MOSFET perfect for efficient power management applications. Featuring a 20V drain-source voltage, low on-resistance of 22mΩ at 4.5V, and a total power dissipation of 0.92W, it ensures reliable operation in automotive, industrial, and consumer electronics. Its RoHS compliance, halogen and antimony free construction, and UL flammability rating make it a safe and eco-friendly choice. Enjoy fast switching speeds, low leakage, and ESD protection—order now and optimize your power circuits with confidence.
Buy Diodes DMN2024UFX now and experience unmatched reliability and high-efficiency power switching for your electronic projects.
Frequently Asked Questions
Where can I buy DIODES INC. DMN2024UFX7?
You can click on the BUY or RFQ button to purchase DMN2024UFX7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part DMN2024UFX7?
You can download the DMN2024UFX7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of DMN2024UFX7?
DIODES INC.
