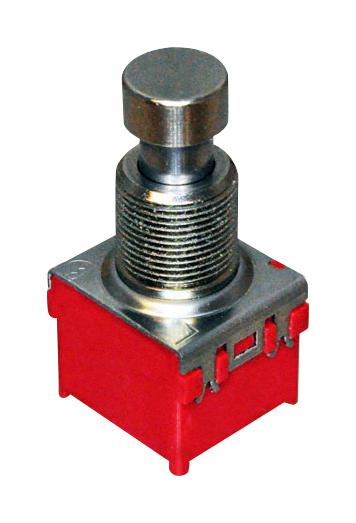

E-SWITCH FS5700SPLT2B2M1QEH Pushbutton Switch
The FS5700 Series pushbutton switches offer high reliability and versatile configurations, including SPDT, DPDT, and 3PDT contact arrangements. Designed for panel or PCB mounting, they feature momentary or alternate actuation with high contact force for industrial and automation applications. With an operating temperature range of 10°C to 70°C and a full travel of up to 5.0mm, these switches are suited for vandal-resistant environments and precise control. Their robust construction ensures electrical life of 30,000 cycles and insulation resistance of 100MOQ at 500VDC, ensuring dependable performance.
E-SWITCH FS5700SPLT2B2M1QEH Pushbutton Switch Specifications:
- Contact Arrangement: SPDT, DPDT, or 3PDT
- Electrical Life: 30,000 Cycles
- Contact Resistance: 50m Initial
- Insulation Resistance: 100MOQ at 500VDC
- Strength: 1000V RMS
- Operating Temperature: 10°C to 70°C
- Storage Temperature: -10°C to 70°C
- Full Travel: SP & DP: 2.7mm; 3P: 5.0mm
- Actuation Force: Single pole momentary: 1700gf; Single pole alternate: 1000gf; Double pole momentary: 2500gf; Double pole alternate: 1600gf; 3 pole alt.: 3000gf
- Panel Thickness: Max. 8mm
- Mounting Options: PCB and panel mount
- Material: Durable components suitable for vandal-resistant applications
- Thread Size: M12x0.75
- Sealing: Epoxy hardware options available
Buy the Innovative Series FS Series Pushbutton Switch: FS5700SPLT2B2M1QEH
Purchase the FS5700 Series pushbutton switches online today for your automation and control projects. These switches provide high contact force, multiple contact configurations, and robust construction suited for vandal-resistant environments. With a full travel up to 5.0mm and operation temperature from 10°C to 70°C, they ensure dependable switching performance in demanding industrial settings. Available with PCB or panel mount options, these switches support up to 30,000 cycles of operation, making them a perfect choice for reliable, long-term use in control and automation systems. Buy now and enhance your project’s reliability with high-quality switches designed for performance.
Order your FS Series pushbutton switch FS5700SPLT2B2M1QEH today and equip your industrial control systems with reliable, durable high-force switching solutions.
Frequently Asked Questions
Where can I buy E-SWITCH FS5700SPLT2B2M1QEH?
You can click on the BUY or RFQ button to purchase FS5700SPLT2B2M1QEH from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part FS5700SPLT2B2M1QEH?
You can download the FS5700SPLT2B2M1QEH datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of FS5700SPLT2B2M1QEH?
E-SWITCH
