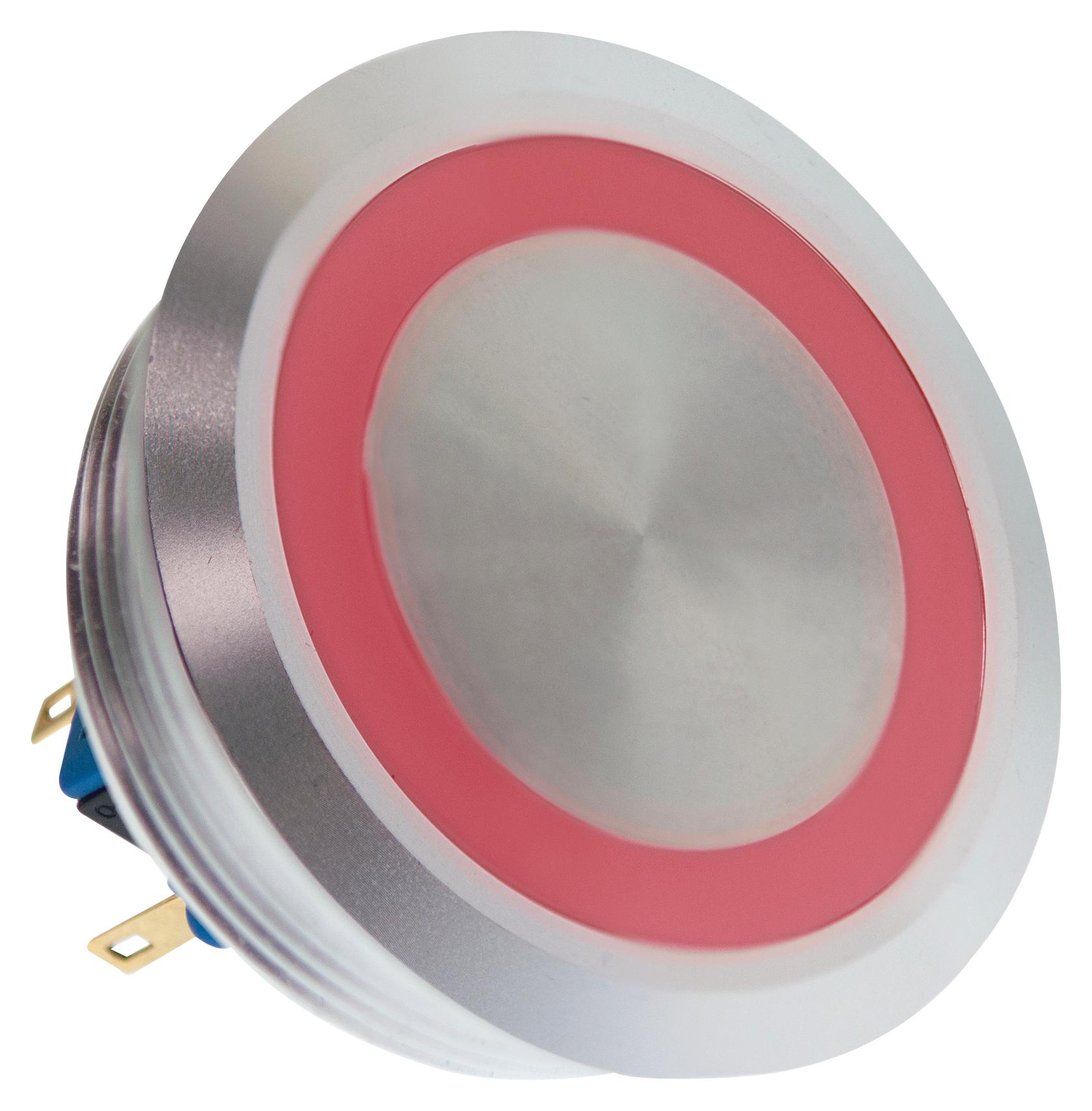

E-SWITCH PV10F2U0SS311 Anti-vandal switch
The PV10 Series anti-vandal switch is a durable, panel-mount device with a 40mm diameter cutout, IP65 moisture protection, and multiple switch functions including SPDT and DPDT options. Features include illuminated and non-illuminated options with various LED voltage configurations, stainless steel finish for robustness, and a travel of 2.8mm. Suitable for industrial control panels, it offers high mechanical and electrical durability with a mechanical life of 000,000 cycles and an electrical rating of 2A at 48VDC, ensuring dependable operation in harsh environments.
E-SWITCH PV10F2U0SS311 Anti-vandal switch Specifications:
- Electrical Rating: 2A, 48VDC
- Mechanical Cycles: 000,000
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.8mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT or DPDT
- Actuation Force: 6.5N
- Panel Thickness: 1-5mm
- Hex Nut Torque: 0.6Nm
Buy the Industrial Equipment PV10F2U0SS311 – Reliable Vandal-Resistant Switch for Industrial Applications
Purchase the PV10 Series anti-vandal switch online today and enhance your industrial control systems with a reliable, sturdy switch designed for harsh environments. Featuring a 40mm panel cutout, IP65 moisture protection, and versatile switch functions including SPDT and DPDT options, this switch ensures high durability with a mechanical life of 000,000 cycles and a 2A electrical rating at 48VDC. Its stainless steel finish and multiple illumination options make it suitable for industrial scenes requiring dependable operation and long-term performance.
Order your PV10 Series anti-vandal switch today and equip your control panels with a robust, IP65-rated switch capable of withstanding harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV10F2U0SS311?
You can click on the BUY or RFQ button to purchase PV10F2U0SS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV10F2U0SS311?
You can download the PV10F2U0SS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV10F2U0SS311?
E-SWITCH
