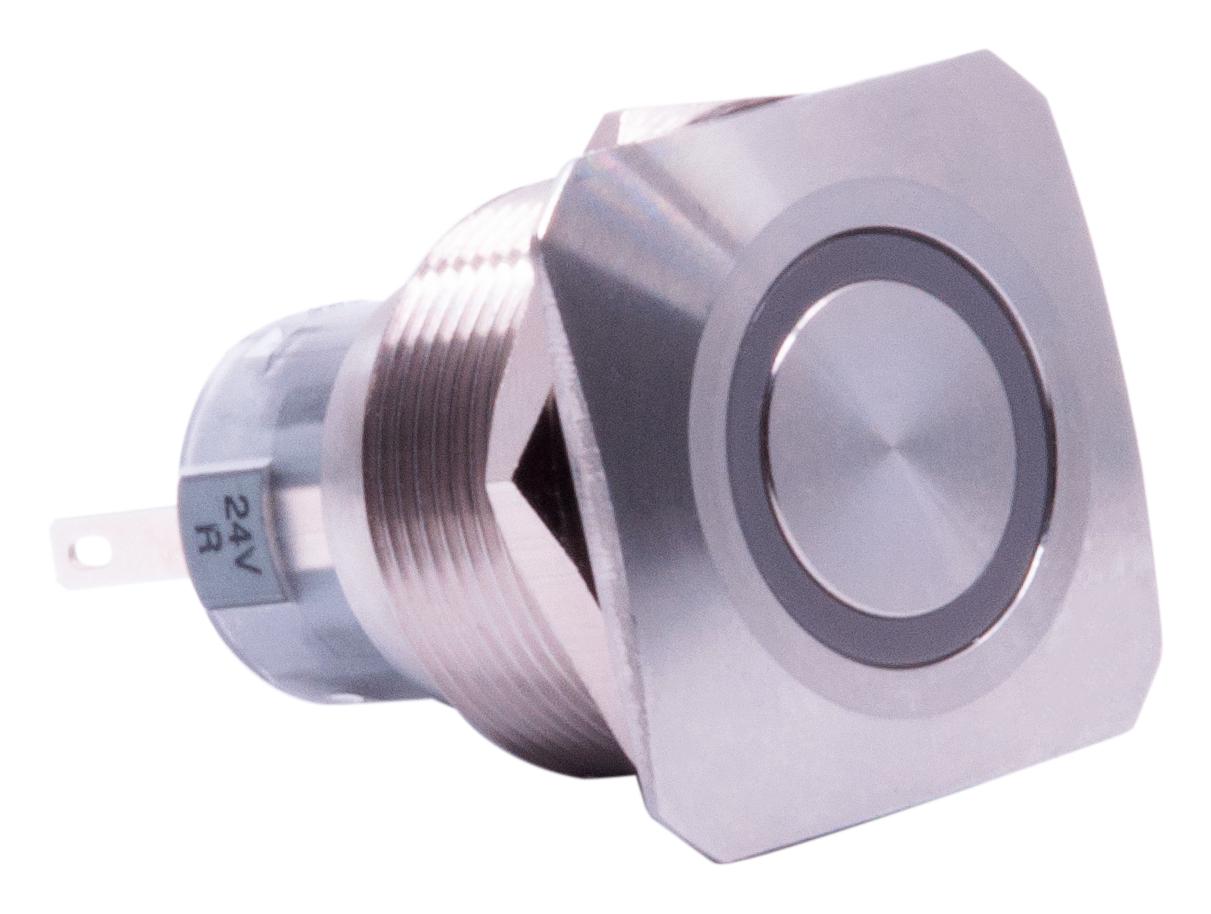

E-SWITCH PVS7F2GSS311 Anti-Vandal Switch
The PVS7 series anti-vandal switch is a highly durable, IP65 rated switch designed for rugged applications. It features a 22mm stainless steel body, with options for illuminated or non-illuminated versions, including RGB LED configurations. The switch offers SPDT and DPDT contact arrangements, with various actuator and lens options. Its operating temperature ranges from -20°C to 55°C, with a 2.50mm travel and a 2A, 24VDC electrical rating. Ideal for industrial, security, and public environments needing reliable vandal-proof switching solutions.
E-SWITCH PVS7F2GSS311 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT, DPDT
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Body Material: Stainless Steel
- Size: 22mm diameter
- LED options: RGB or single color, voltage 3-24V
- Actuation Force: 4 N
Buy the Buy Stainless Steel Vandal Switch Part Number PVS7F2GSS311 Online
Discover the durable PVS7 anti-vandal switch, engineered with a stainless steel body and IP65 rating for maximum protection. With options for illuminated or non-illuminated models, this 22mm switch supports SPDT and DPDT configurations, ideal for demanding industrial and security environments. Its design ensures long life with 50,000 cycles and a temperature range from -20°C to 55°C. Easy to install on panels 1-11mm thick, it provides reliable switching with a 2.50mm travel and rated at 2A, 24VDC, offering exceptional quality for critical applications.
Order your stainless steel series PVS7F2GSS311 anti-vandal switch today and enhance your security and industrial controls with dependable, rugged performance.
Frequently Asked Questions
Where can I buy E-SWITCH PVS7F2GSS311?
You can click on the BUY or RFQ button to purchase PVS7F2GSS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVS7F2GSS311?
You can download the PVS7F2GSS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVS7F2GSS311?
E-SWITCH
