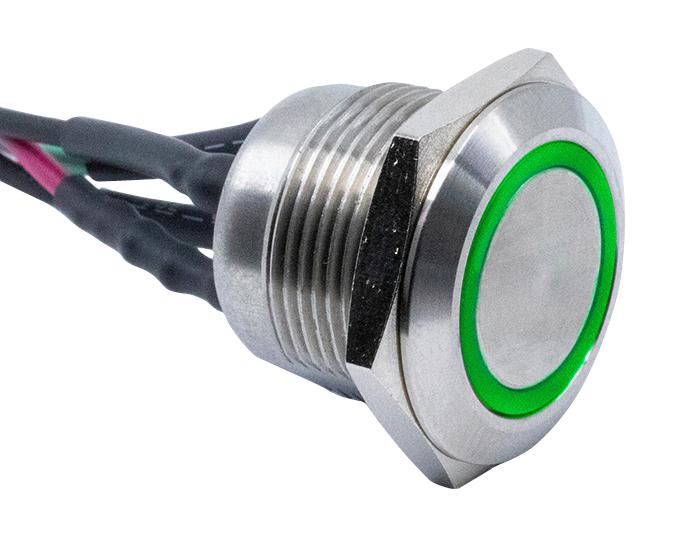

E-SWITCH SV4F23SS301 Vandal-Resistant Pushbutton Switch
The SV4 series anti-vandal switch is a highly durable, IP67-rated pushbutton switch designed for industrial applications. It features a short body with a 19mm diameter panel cutout, multiple LED illumination options including ring and ring & power symbols, and a stainless steel actuator for enhanced vandal resistance. The switch operates on 2A, 36VDC with a contact resistance of 50mΩ Max at 1A 12VDC, and has a mechanical life of 200,000 cycles. Suitable for panel thicknesses up to 6mm, it offers reliable SPST contact arrangement and easy solder or wire termination at 500mm length.
E-SWITCH SV4F23SS301 Vandal-Resistant Pushbutton Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
- Diameter: 19mm
- Panel Cutout: 19mm diameter
- Body Material: Stainless Steel
- LED Illumination: Ring or ring & power symbol, various voltages
- Terminal Length: 500mm (optional wire leads)
- Mounting Style: Panel mount
- Body Style: Short, vandal-resistant
- Actuator: Stainless steel, flat type
Buy the Stainless Steel SV4F23SS301 – Reliable Vandal-Resistant Switch for Industrial Applications
Order the vandal-resistant stainless steel pushbutton switch today for robust performance in harsh industrial environments. Featuring IP67 protection, multiple LED illumination options, and a short compact body, this switch ensures reliable operation over 200,000 cycles. Its IP67-rated moisture protection and stainless steel construction make it ideal for demanding applications requiring vandal resistance and durability. Purchase online now for quick delivery and seamless integration into your control panels, ensuring long-lasting, dependable performance in tough conditions.
Get SV4F23SS301 today—built for precision, durability, and vandal resistance in industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH SV4F23SS301?
You can click on the BUY or RFQ button to purchase SV4F23SS301 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV4F23SS301?
You can download the SV4F23SS301 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV4F23SS301?
E-SWITCH
