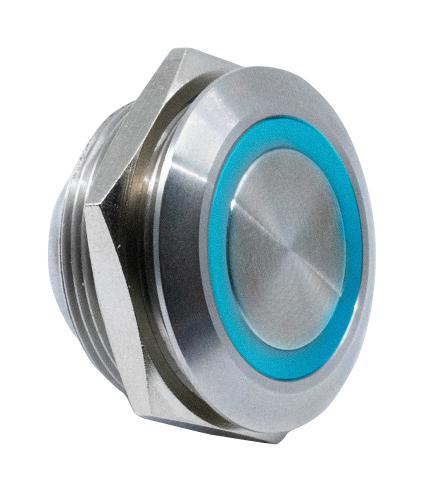

E-SWITCH SV4F23SS6G1 Industrial Anti-Vandal Switch
The SV4 series anti-vandal switch offers a compact, robust solution with a short body design, suitable for industrial environments. It features IP67 moisture protection, SPST contact configuration, and multiple LED illumination options, including ring and ring & power symbols. With electrical ratings of 2A at 36VDC, 200,000 cycle life, and a travel of 1.80mm, it ensures reliable performance with stainless steel finish options and screw or wire lead mounting. Ideal for control panels, industrial machinery, and security applications requiring durable and illuminated switches.
E-SWITCH SV4F23SS6G1 Industrial Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mQ Max. at 1A 12VDC
- Dielectric Strength: 2,000V RMS
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
- Body: Stainless Steel with Flat Actuator
- Switch Diameter: 19mm
- Illumination Options: Ring and ring & power symbol, 6V to 24V voltage options
- Wire Length: 500mm (20 AWG UL3385 wire)
- Mounting: M19 x 1.0 thread, panel cutout 15.50mm diameter
Buy the Innovative SV4 Series – Reliable Anti-Vandal Switch for Industrial Applications
Purchase the SV4 series anti-vandal switch online today and enjoy quick, secure delivery. These switches are perfect for industrial control panels, security systems, and machinery requiring IP67 protection. With multiple illumination options and stainless steel construction, they provide durable, reliable performance in harsh environments. Whether you need a compact switch with LED indicators or a robust vandal-proof design, this product ensures long-lasting operation and easy installation. Upgrade your equipment now by ordering online for fast processing and excellent customer support.
Buy SV4 series anti-vandal switch now and enhance your industrial control systems with a durable, IP67-rated switch featuring multiple LED illumination options.
Frequently Asked Questions
Where can I buy E-SWITCH SV4F23SS6G1?
You can click on the BUY or RFQ button to purchase SV4F23SS6G1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV4F23SS6G1?
You can download the SV4F23SS6G1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV4F23SS6G1?
E-SWITCH
