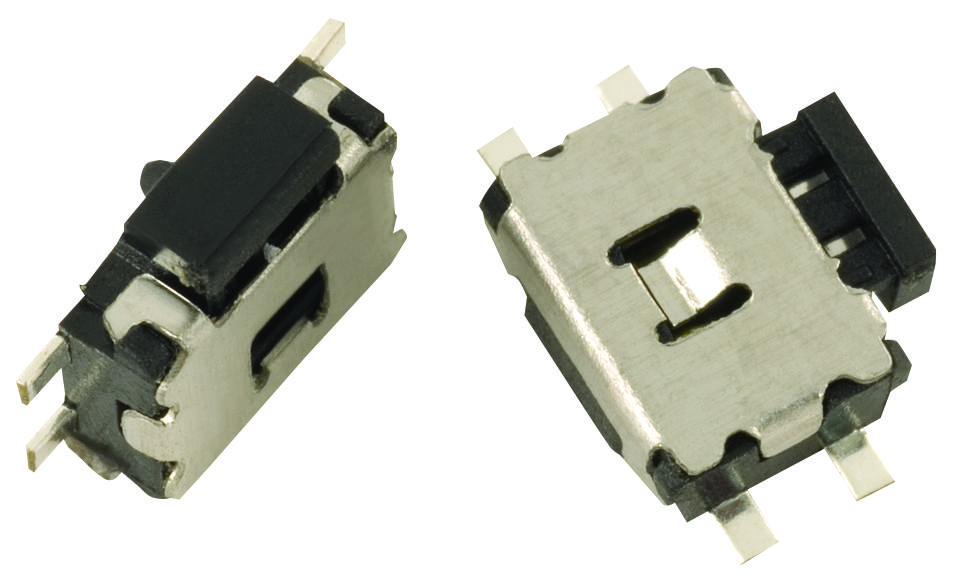

E-SWITCH TL1014BF160QG Tactile Switch
The TL1014 series is a compact, surface-mount tactile switch with silver-plated contacts, designed for reliable operation in electronic devices. It features a right-angle design and multiple operating force options of 160 gf and 220 gf, ensuring long cycle life up to 200,000 and 100,000 cycles respectively. Rated at 50mA @ 12VDC, it withstands temperatures from -40°C to 85°C. Ideal for audio, computer peripherals, communication systems, medical and consumer electronics, this subminiature switch offers durability, easy surface mounting, and excellent electrical performance.
E-SWITCH TL1014BF160QG Tactile Switch Specifications:
- Electrical Rating: 50mA @ 12VDC
- Life Expectancy: 160 gf - 200,000 cycles, 220 gf - 100,000 cycles
- Contact Resistance: 100m Max. Initial
- Insulation Resistance: 100 MO Min. at 500V
- Dielectric Strength: 250VAC for 1 min.
- Operating/Storage Temperature: -40°C to 85°C
- Operating Force: 160 gf, 220 gf
- Travel: 0.25mm (160 gf), 0.30mm (220 gf)
- Contact Arrangement: SPST
- Mounting: Surface mount, right-angle design
- Dimensions: 6.40mm x 4.40mm (No Boss), Other sizes vary
- Contact Plating: Silver
Buy the Buy Manufacturer Tactile Switch Part Number TL1014BF160QG Online
Purchase the Manufacturer Tactile Switch TL1014BF160QG online today for reliable performance in a compact, surface-mount design. Ideal for electronics requiring precise actuation, this switch features durable silver contacts, multiple force options, and high cycle life—making it perfect for audio equipment, medical devices, and consumer electronics. With a temperature range of -40°C to 85°C and easy surface mounting, this subminiature switch ensures dependable operation and seamless integration into your design. Order now for fast delivery and consistent quality.
Get Manufacturer TL1014BF160QG today—built for precise activation and long-lasting durability in compact electronic designs.
Frequently Asked Questions
Where can I buy E-SWITCH TL1014BF160QG?
You can click on the BUY or RFQ button to purchase TL1014BF160QG from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL1014BF160QG?
You can download the TL1014BF160QG datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL1014BF160QG?
E-SWITCH
