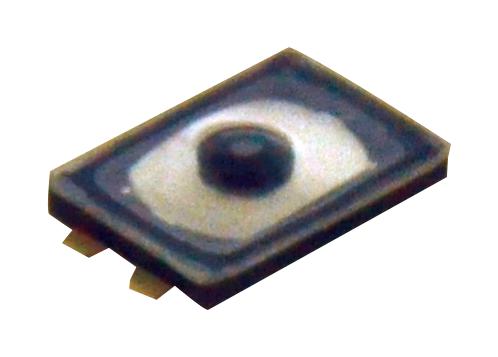

E-SWITCH TL3780AF160QG SPST Switch
The TL3780AF160QG is a high-reliability, silver contact SPST switch designed for electronic control applications. With a contact rating of 50 mA at 12 VDC, it features a contact resistance of less than 500mΩ, a mechanical life of 500,000 cycles, and an insulation resistance of at least 50MQ. Operating within a temperature range of -40°C to +85°C, this switch offers a precise travel of 0.13 ± 0.05mm, ensuring durability and performance in various environmental conditions.
E-SWITCH TL3780AF160QG SPST Switch Specifications:
- Contact Material: Silver
- Contact Rating: 50 mA; 12 VDC
- Travel: 0.13 ± 0.05mm
- Operating Force: 160 ± 50 grams
- Electrical Life: 500,000 cycles
- Contact Resistance: ≤ 500mΩ
- Insulation Resistance: ≥ 50MQ at 100VDC
- Dielectric Strength: 250 VAC for 1 minute with no breakdown
- Operating Temperature: -40°C to +85°C
- RoHS Compliant; Halogen Free
- Dimensions: Not specified
Buy the Buy Switches Component Part Number TL3780AF160QG Online
Purchase the high-quality SPST switch TL3780AF160QG online today. This switch offers durable silver contacts, a rated 50mA at 12VDC, and is designed for reliable operation in diverse environments. Its long electrical life of 500,000 cycles, a temperature range from -40°C to +85°C, and insulating properties ensure optimal performance. Ideal for electronic control systems, this switch combines precision, durability, and environmental compliance, making it a valuable choice for professionals seeking dependable component sourcing.
Order your Switches Series TL3780AF160QG today and ensure reliable electronic control with high durability and precise switching performance.
Frequently Asked Questions
Where can I buy E-SWITCH TL3780AF160QG?
You can click on the BUY or RFQ button to purchase TL3780AF160QG from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3780AF160QG?
You can download the TL3780AF160QG datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3780AF160QG?
E-SWITCH
