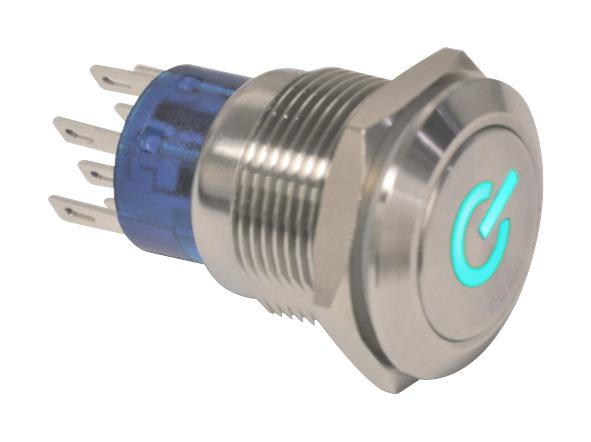

E-SWITCH ULV4F2HSLL16L21 Vandal Switch
The ULV4 series anti-vandal switches are durable, IP67 rated switches suitable for industrial or outdoor applications. They offer SPDT or DPDT contact configurations with illuminated and non-illuminated options, featuring a 19mm panel cutout diameter. Designed with sealed construction for moisture resistance, they include optional wiring, detachable sockets, and various graphic symbols including power symbols. These switches operate reliably at temperatures from -20°C to 55°C, with high mechanical and electrical lifespan. Ideal for control panels needing vandal-resistant, high-performance switching solutions with multiple custom graphic and wiring options.
E-SWITCH ULV4F2HSLL16L21 Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Insulation Resistance: 1,000MΩ min. @ 500 VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Panel Thickness: 1-10mm
- Thread: M19 x 1.0
- Body Diameter: 19mm
- Dimensions: 17.5mm height, 22mm width
- Material: Anodized aluminum body, stainless steel impact protection
- Certifications: cULus Certified
Buy the Vandal Switch Series ULV4: ULV4F2HSLL16L21
Purchase the ULV4F2HSLL16L21 vandal-resistant switch online today for high durability and moisture protection. With features like IP67 rating, sealed construction, and multi-configuration options including illuminated and non-illuminated versions, this switch ensures reliable operation in demanding environments. Its robust design supports up to 1,000,000 cycles for mechanical and 50,000 cycles for electrical lifespan. Easy to install with M19 x 1.0 thread, making it ideal for industrial, outdoor, or vandal-prone applications. Get yours now!
Order your ULV4F2HSLL16L21 vandal-resistant switch today and equip your control panels with reliable, weatherproof, and vandal-resistant switching solutions.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4F2HSLL16L21?
You can click on the BUY or RFQ button to purchase ULV4F2HSLL16L21 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4F2HSLL16L21?
You can download the ULV4F2HSLL16L21 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4F2HSLL16L21?
E-SWITCH
